Shoulder Switch - Seat Back - 2nd Row - LH - 5-Seat | Remove And Replace: Remove

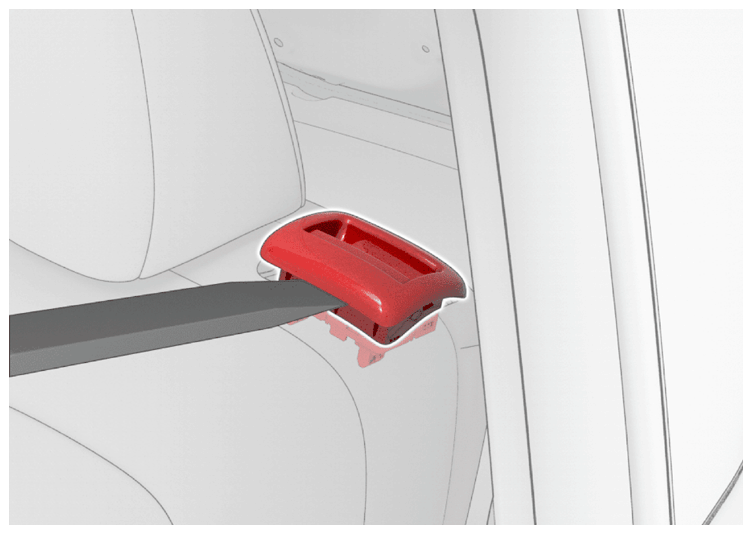

  1. Use a trim tool to release the clips that attach the shoulder switch to the seat.

    Tip: Insert the trim tool from the front of the shoulder switch.

    CAUTION: The shoulder switch has an electrical connector; do not pull the shoulder switch away from the seat yet.
    G14822981Courtesy of TESLA, INC.

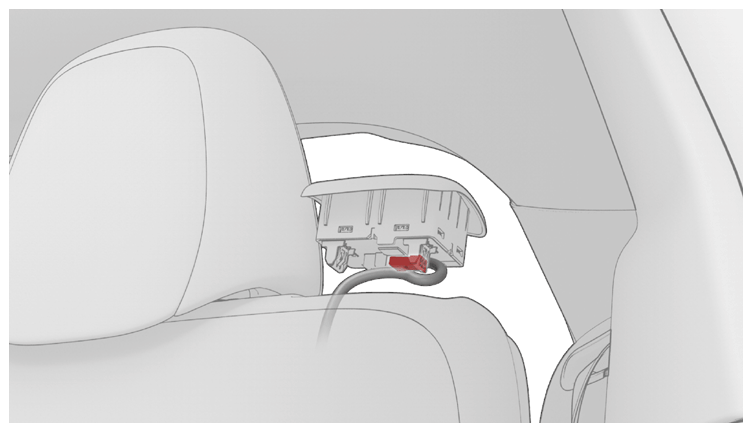

  2. Disconnect the electrical connector from the shoulder switch.
    G14822982Courtesy of TESLA, INC.
  3. Remove the shoulder switch from the vehicle.
