Shoulder Switch - Seat Back - 2nd Row - LH - 5-Seat | Remove And Replace: Install

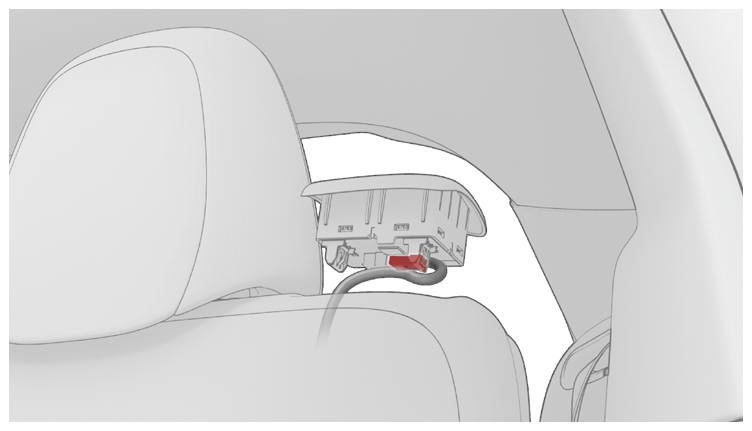

  1. Connect the electrical connector to the shoulder switch.
    G14822983Courtesy of TESLA, INC.

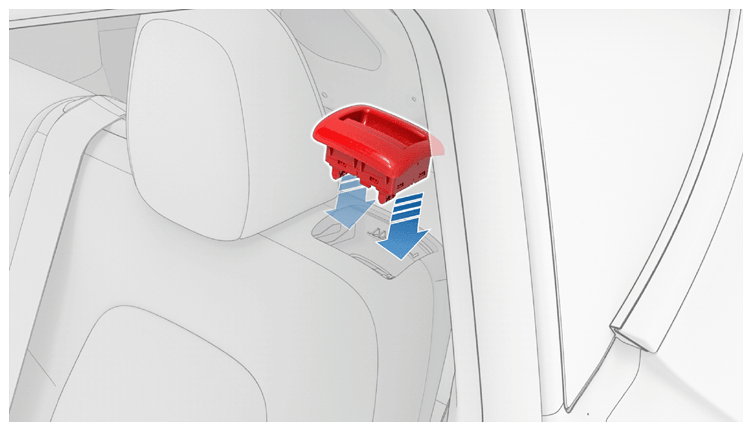

  2. Install the shoulder switch and make sure that the clips are fully engaged.
    G14822984Courtesy of TESLA, INC.
  3. Test the shoulder switch to make sure that it works as expected.
