Seat Back - 2nd Row - LH - 5-Seat | Remove And Replace: Install

Installation procedure is the reverse of removal, except for the following:

CAUTION: The LH seat frame bolts must be installed in the following sequence:

1. Front Outboard
2. Rear Inboard
3. Rear Outboard
4. Front Inboard

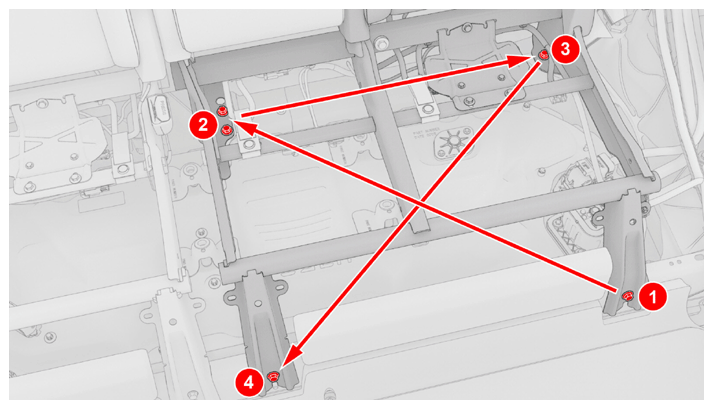

Fig 1: LH Seat Frame Bolt Tightening Sequence - 5-Seat

Courtesy of TESLA, INC.
