Torque Specifications

TORQUE SPECIFICATIONS: PIVOT CLAMPS - SEAT BACK - 2ND ROW - CENTER/20 (REMOVE AND REPLACE)

Description Torque Value Recommended Tools Reuse/Replace Notes

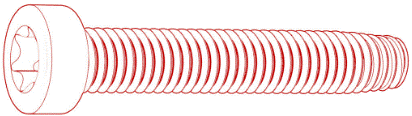

Bolts that attach the center 2nd row seatback pivot clamps to the vehicle Torque 22 N.m
  • Torx T40 socket
  • Flex head ratchet/flex head torque wrench
 Reuse
