Lumbar Bun - 2nd Row - Center/20 - 5-Seat | Remove And Replace: Remove

  1. Remove the 2nd row center/20 seat back panel. See REMOVE .

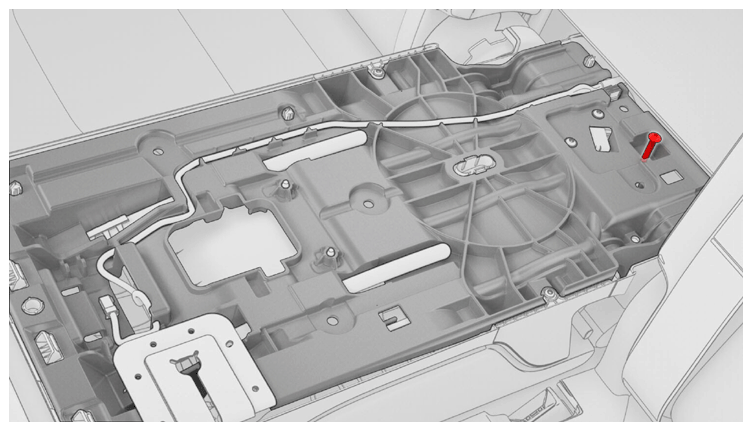

  2. Remove the screw that attaches the 2nd row center/20 lumbar bun to the 2nd row seat.
    NOTE: Use of the following tool(s) is recommended:
    • Torx T20 socket
    G14822927Courtesy of TESLA, INC.
  3. Raise the center/20 seat back into the upright position.

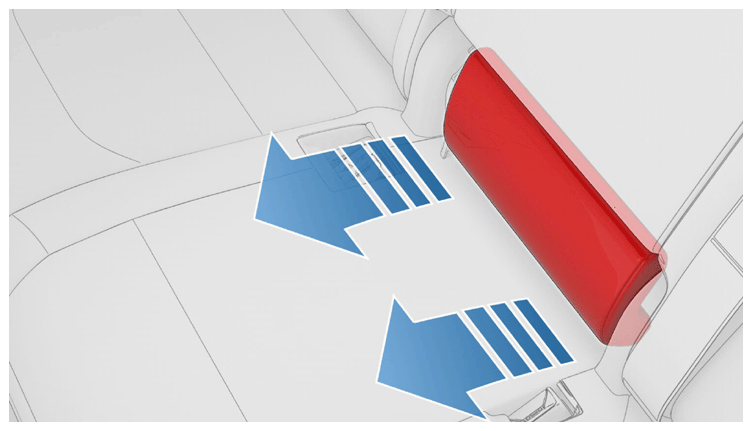

  4. Release the clips (x2) that attach the seat bun to the seat assembly, and then remove the seat bun from the vehicle.
    NOTE: Pull the bolsters outwards simultaneously to aid removal.
    G14822928Courtesy of TESLA, INC.
