Wheel Arch Liner - Rear - LH (Structural Pack) - Remove And Replace: Remove

  1. Remove the LH rear wheel. See Wheel (Remove and Install) .
  2. Remove the push clips (x7), fan clips (x6) and metal clips (x4) that attach the LH rear wheel arch liner to the vehicle.
    NOTE: Rotate the fan clips counterclockwise to remove.

    Tip: Use a prytool to get cutters under metal clip.

    G14821239Courtesy of TESLA, INC.
    G14821240Courtesy of TESLA, INC.
    G14821241Courtesy of TESLA, INC.
  3. Release the LH rear wheel arch liner from the studs (x10), and then remove the liner from the vehicle.
    G14821242Courtesy of TESLA, INC.
    G14821243Courtesy of TESLA, INC.

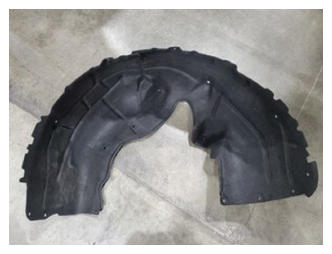

    G14821244Courtesy of TESLA, INC.
