Panel - Cowl Screen (RHD) - Remove And Replace: Install

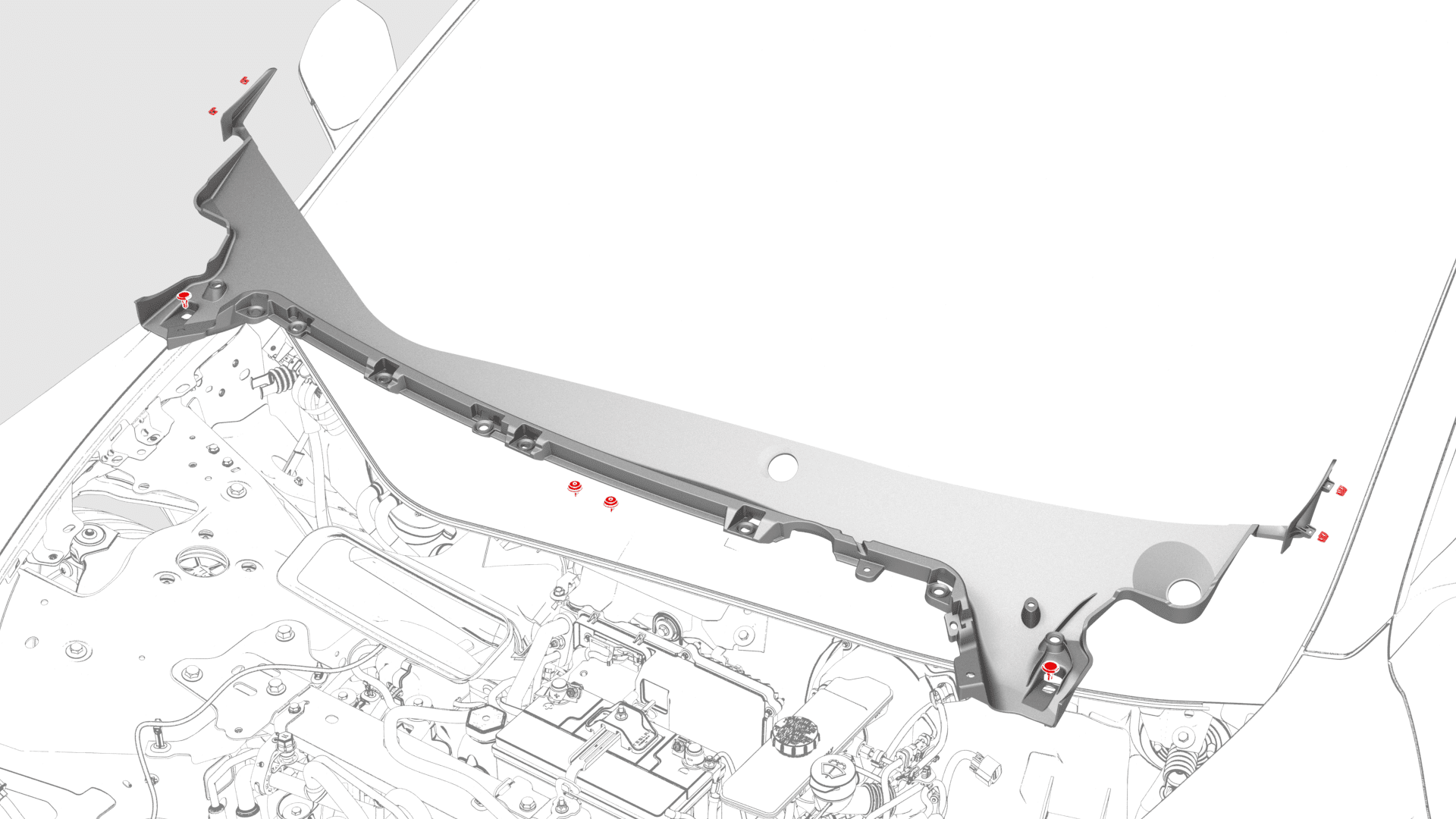

- Fasten the clips that attach the cowl screen panel to the vehicle, and then install the cowl screen panel to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Fasten the washer pump hose from the Y-tube, and then install the clip that attaches the tube to the cowl screen.
 Courtesy of TESLA, INC.
|
- Install the LH and RH wiper arms. See Wiper Arms (Remove and Replace)
.
- Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Close the driver's door and fully lower the window.
