Cover - Shock Tower - LH - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH front window.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .

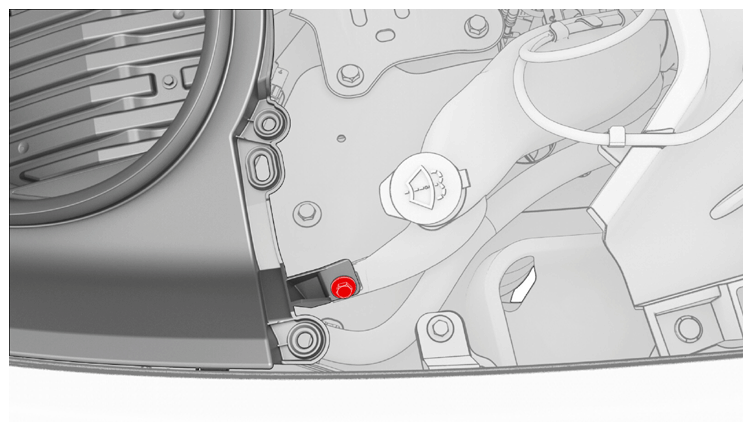

  3. Remove the bolt that attaches the underhood storage unit to the washer fluid reservoir neck.

    5 N.m (3.7 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    G14821496Courtesy of TESLA, INC.

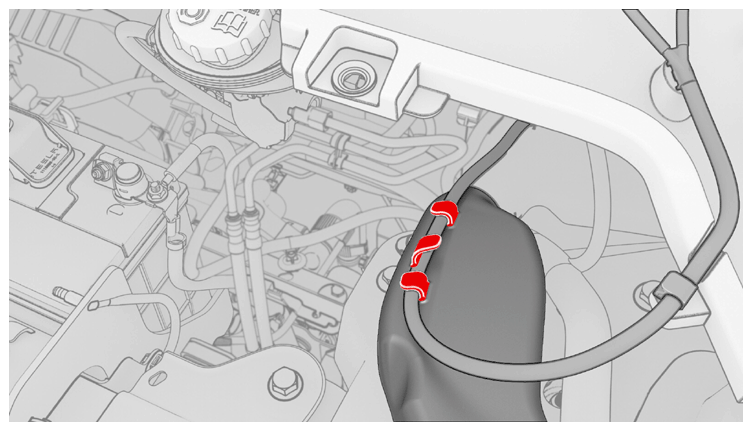

  4. Release the tabs that attach the washer hose to the washer tank neck, and then remove the washer tank neck from the vehicle.
    G14821497Courtesy of TESLA, INC.

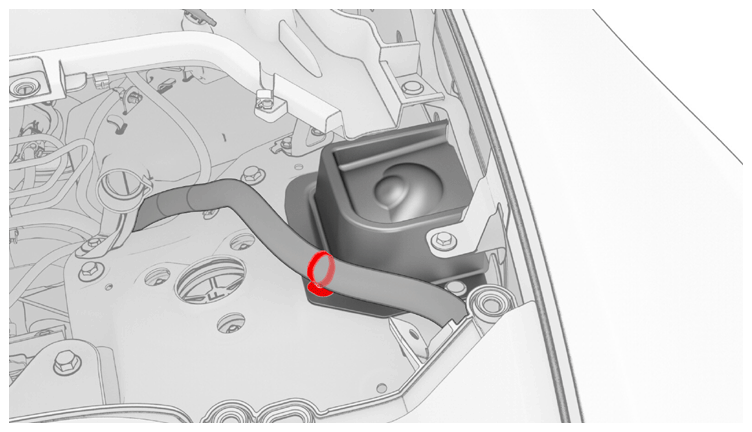

  5. Release the clip that attaches the harness to the LH shock tower cover.
    G14821498Courtesy of TESLA, INC.

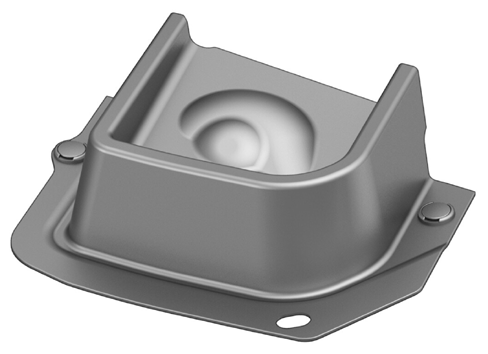

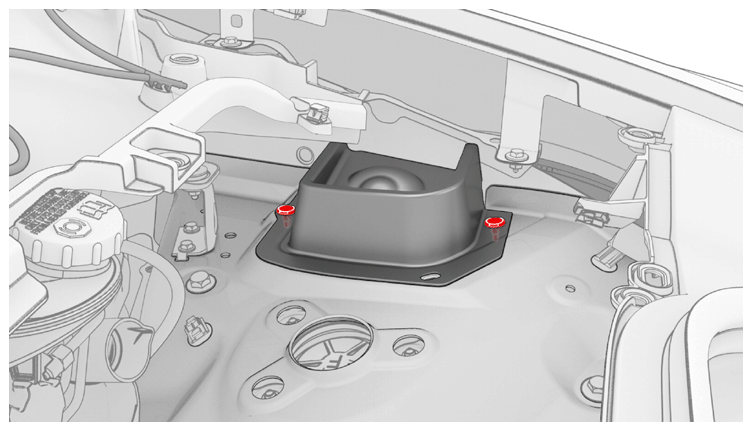

  6. Release the clips that attach the LH shock tower cover to the vehicle, and then remove the cover from the vehicle.
    NOTE: LH shock tower cover shown, RH similar
    G14821499Courtesy of TESLA, INC.
    G14821500Courtesy of TESLA, INC.
