Bracket - Center - Cowl Screen - Remove And Replace: Remove

Open the LH front door and fully lower the window.
Remove the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .

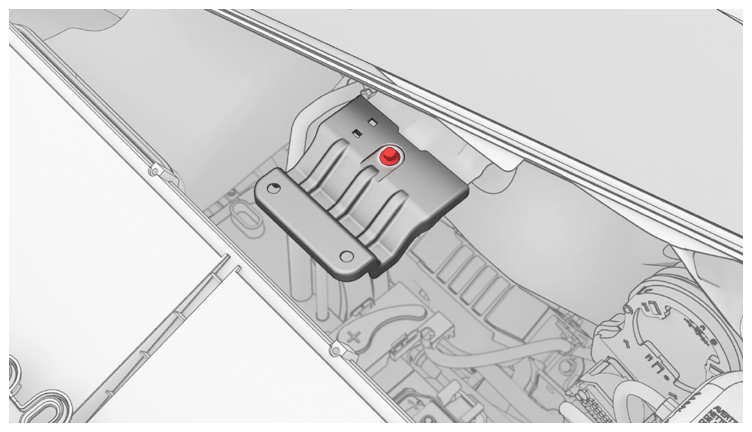

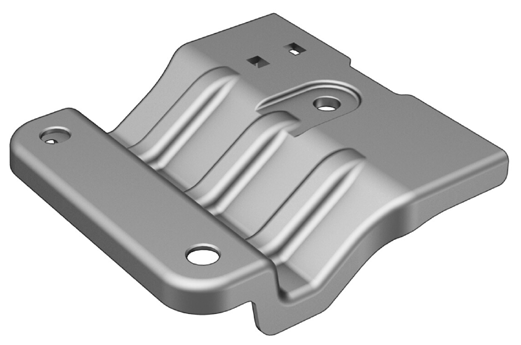

Remove the center bolt that attaches the center cowl screen bracket to the vehicle, and then remove the bracket from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
