Bracket - License Plate - Rear (EMEA And APAC) - Remove And Replace: Install

  1. Verify the thread inserts were not damaged during removal, and clean the surface area with IPA wipes.
  2. Position the rear license plate bracket onto the vehicle, and then install the screws that attach the bracket to the vehicle.

    1.2 N.m (.9 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    • 2 in extension

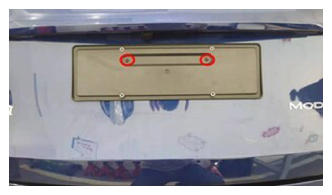

    G14821336Courtesy of TESLA, INC.

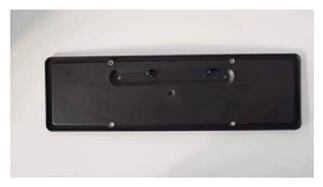

    G14821337Courtesy of TESLA, INC.
