Retrofit (NA)

NOTE: Animated Demonstration

Use IPA wipes to clean the front center surface of the front fascia. Allow to fully dry before continuing.

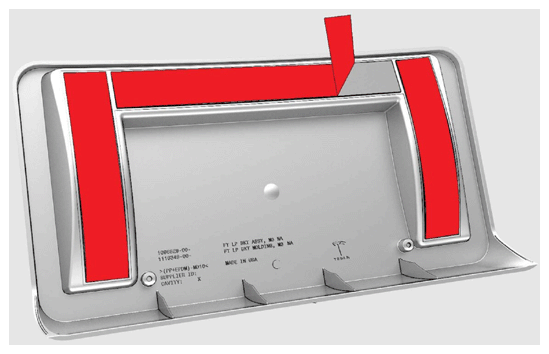

Remove the backing from the long horizontal tape strip on the new front license plate bracket.

Courtesy of TESLA, INC.

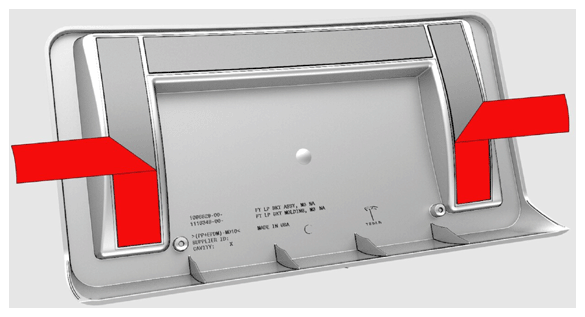

Fold the backing of the vertical tape strips out at a 90 degree angle.

Courtesy of TESLA, INC.

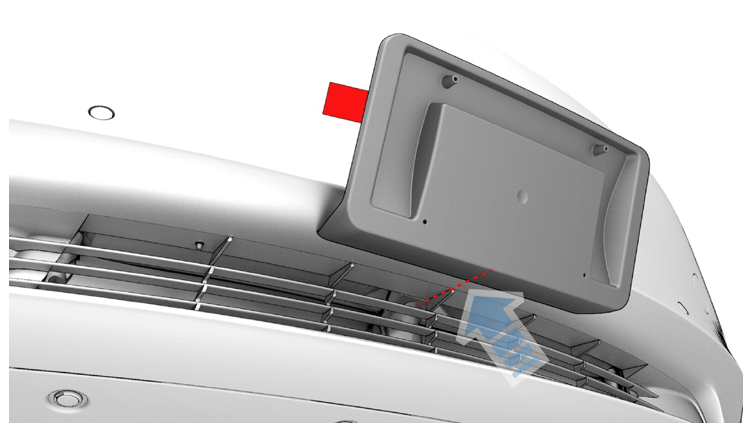

Hold the license plate bracket horizontally and align the locator tab at the bottom lip of the bracket with the center rib of the fascia grille.

Courtesy of TESLA, INC.

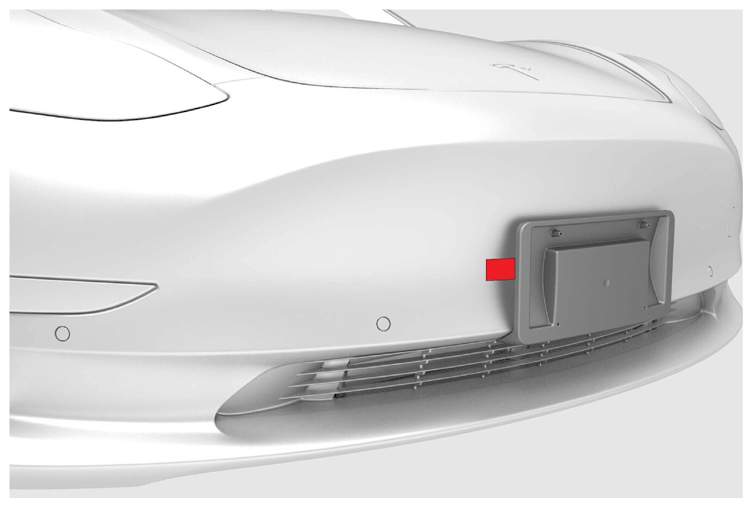

Rotate the license plate bracket vertically and press the top edge against the front fascia.
Pull the tape strips out from the sides of license plate bracket.

Courtesy of TESLA, INC.

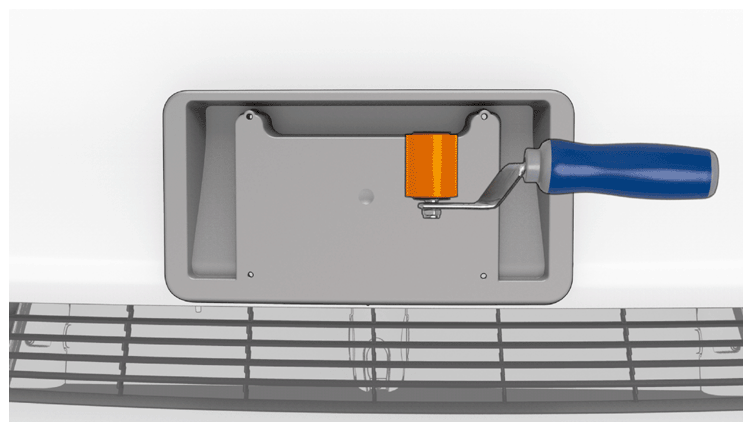

Press the bracket against the front fascia to wet out the adhesive tape.
Tip: Use a seam roller to wet out the adhesive tape.

Courtesy of TESLA, INC.

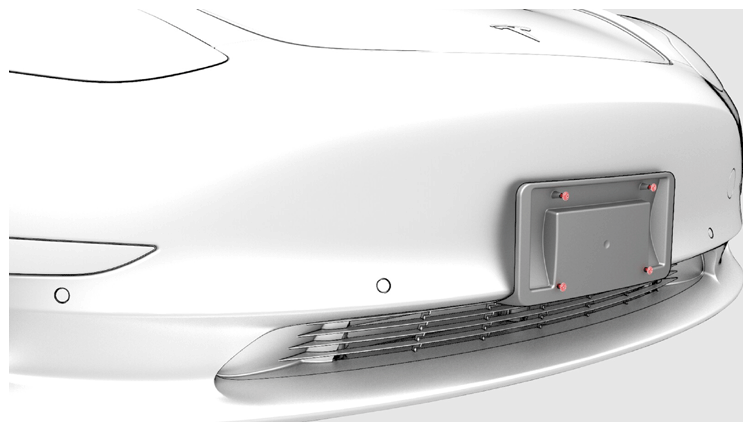

Install the license plate onto the front license plate bracket, and then install the screws that attach the plate to the bracket.
3 N.m (2.2 lbs-ft)

WARNING:
Wear protective eye wear and hearing protection when drilling.

CAUTION:
Only drill though the top surface of the front fascia. Drilling too far can result in damage to the vehicle.

Courtesy of TESLA, INC.
