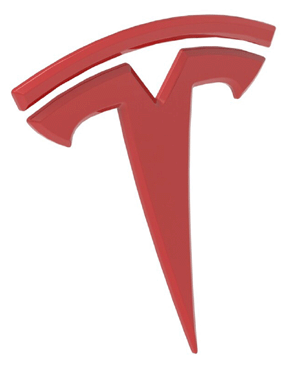

Tesla Badge - Rear - Remove And Replace: Remove

NOTE: The badge cannot be reinstalled if removed. If the badge is removed for any reason, it must be replaced with a new part.
  1. Prepare the badge removal tool with approximately 60 centimeters of monofilament line.
  2. Raise the trunk lid, and position the badge removal tool so that the monofilament line cuts under a corner of the rear Tesla badge.
  3. Move the badge removal tool in a sawing motion to separate the rear Tesla badge from the trunk lid.
    G14821292Courtesy of TESLA, INC.
  4. Use IPA wipes to clean all adhesive residue and debris from the trunk lid surface.
    NOTE: Remove the alignment pins from the hood before removing the adhesive.
