Tesla Badge - Rear - Remove And Replace: Install

  1. Open the trunk lid partially to accommodate the rear badge fixture.
  2. Install the rear badge fixture over the rear-view camera and onto the trunk lid, and then attach the fixture in place with tape.
    NOTE: Make sure the bottom tab is aligned against the left side of the backup camera. Use the jig window to align the edge of the liftgate with the edge of the jig.

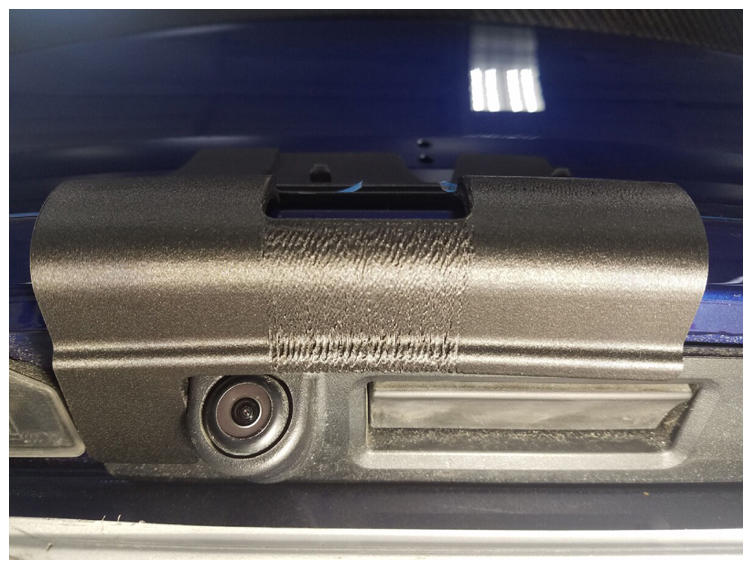

    G14821293Courtesy of TESLA, INC.

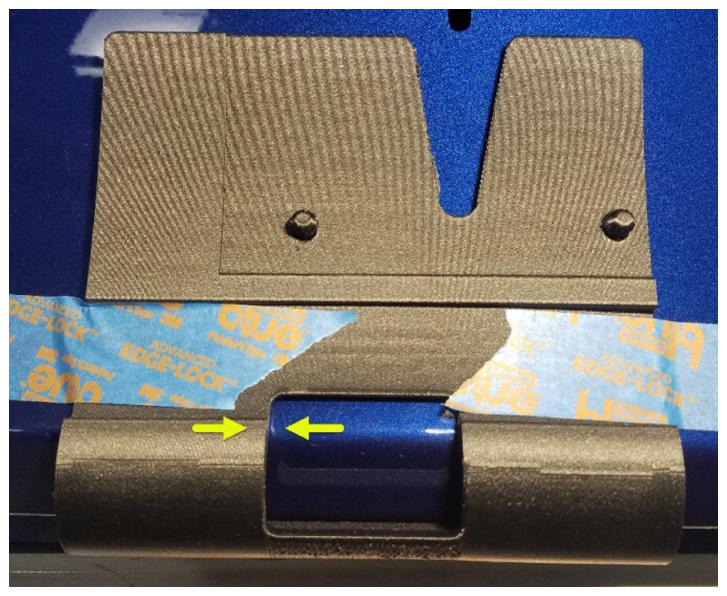

    G14821294Courtesy of TESLA, INC.
  3. Peel the adhesive backing from the trunk badge, align the alignment holes on the badge protective film to the alignment pins on the jig, and then press the badge to the trunk.
  4. Remove the protective film from the badge, and then remove the fixture from the trunk lid.
  5. Replace the protective film over the badge, use a pressure roller to wet-out the badge, and then remove the protective film.
  6. Use an IPA wipe to clean the badge and any remaining debris.
    NOTE: Make sure that all edges of the badge are securely affixed to the trunk lid surface.
  7. Close the trunk lid.
