Sill Plate -- Front -- LH - Remove And Replace: Install

  1. Remove the adhesive backing from the new sill plate.
  2. Using the masking tape as a guide, carefully place the new sill plate into place and press down on it to adhere it to the vehicle.

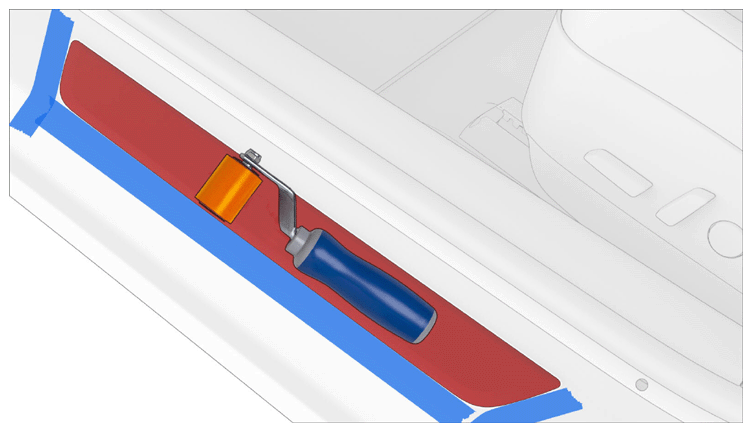

  3. Use a seam roller to fully wet out the adhesive.
    G14821287Courtesy of TESLA, INC.
  4. Remove the protective film from the sill plate.
  5. Remove the masking tape from the door sill.
  6. Close the LH front door.
