Badge - Rear - LH - Remove and Replace (China): Install

  1. Use IPA wipes to clean all adhesive residue and debris from the surface and wait for about 1minute to let it dry.

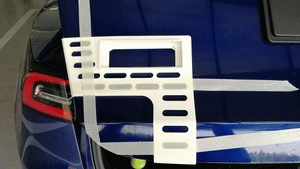

  2. Open the rear trunk partially and install the badge fixture onto the rear trunk.
    G00642439Courtesy of TESLA, INC.
  3. Adhere the LH CN badge onto the rear trunk.
  4. Remove the clear front liner from the LH CN badge.
    NOTE:

    Do not discard the clear front liner at this time.

  5. Remove the badge fixture from the rear trunk.
  6. Reapply the clear front liner to the badge to protect the surface.

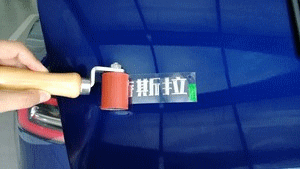

  7. Use a seam roller to wipe off the adhesive residue and to fully adhere the LH CN badge to the rear trunk.
    G00642440Courtesy of TESLA, INC.
  8. Remove the clear front liner from the LH CN badge.
  9. Close the rear trunk.
