Trim - C-Pillar - Upper - LH - Remove And Replace: Install

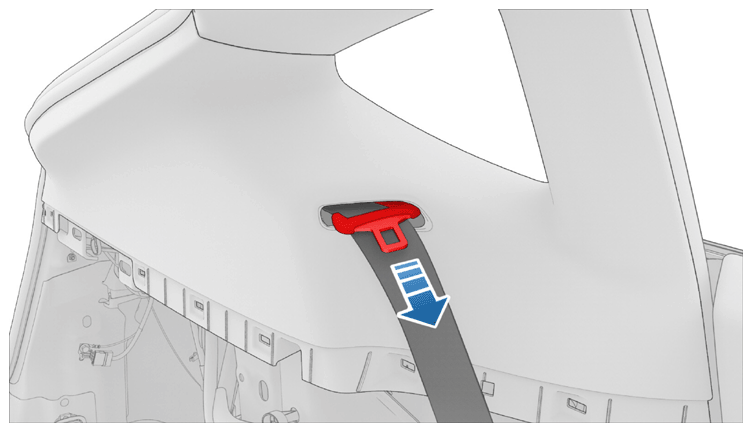

Feed the seat belt through the LH upper C-pillar trim assembly.

Courtesy of TESLA, INC.

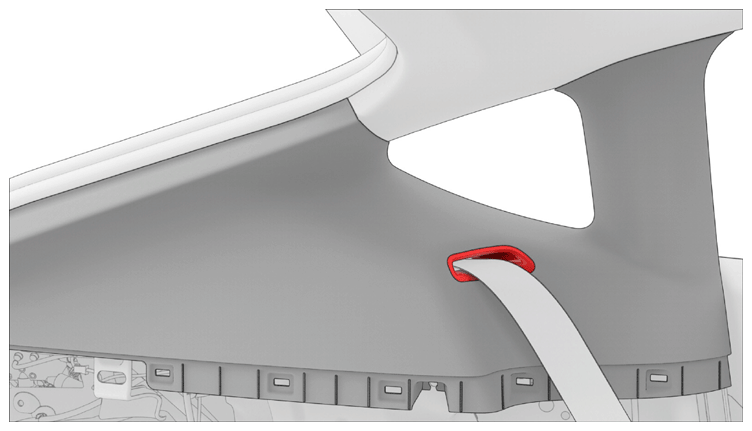

Install the guide bezel to the seat belt, and then install the bezel to the LH upper C-pillar trim.

Courtesy of TESLA, INC.

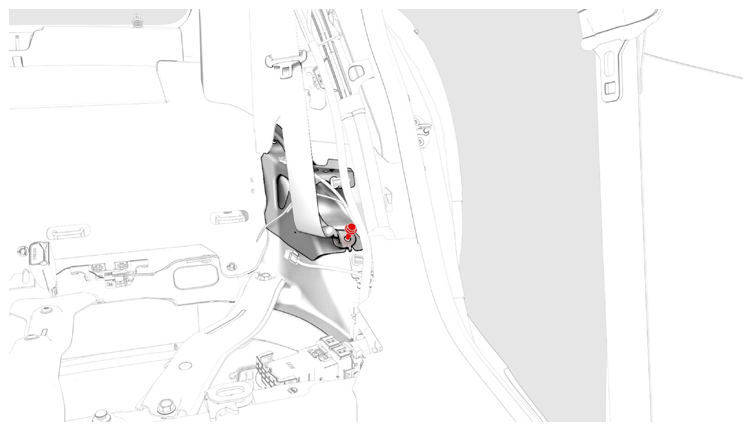

Install a new bolt that attaches the 2nd row LH lower seat belt anchor to the body.
35 N.m (25.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- 3 in extension
Courtesy of TESLA, INC.

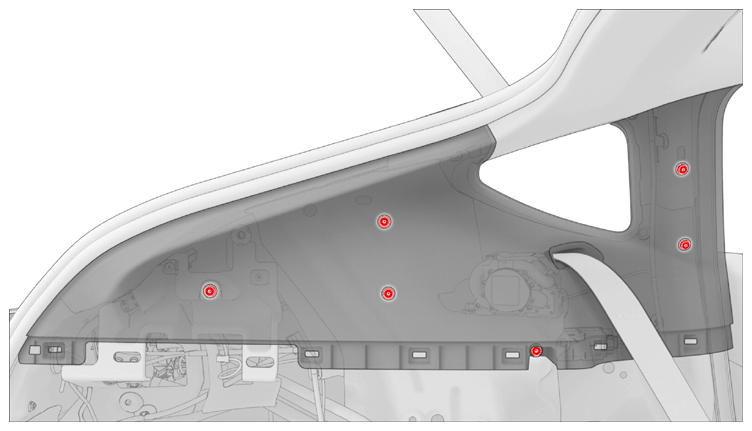

Install the clips (x6) that attach the upper C-pillar trim.
NOTE: Guide the front upper corner groove under the headliner, and then insert the guide tab to headliner behind quarter glass. Ensure the trunk seal is seated on the edge of the trim.

Courtesy of TESLA, INC.
Install the LH trunk side trim. See TRIM - SIDE - TRUNK - LH (REMOVE AND REPLACE) .
Install the LH trunk pocket bracket. See BRACKET - TRUNK POCKET - LH (REMOVE AND REPLACE) .
Install the LH load floor bracket. See BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE) .
Install the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
Return the LH rear passenger seat back to its original position.
Seat the LH rear door seal back into position.
NOTE: Seat the pillar and sill trim tabs underneath the seal.
Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
Move the front seats to their original positions.
Close all the doors and fully raise all the windows.
