Trim - C-Pillar - Lower - LH (7 Seat) - Remove And Replace: Notes

Last modified: 23/02/2023 10:50:33

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Open the LH doors and lower all the windows.
Move the driver seat fully forward.

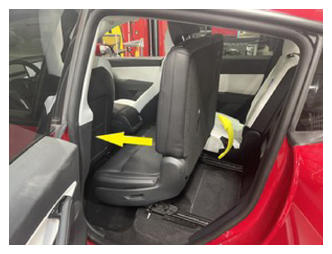

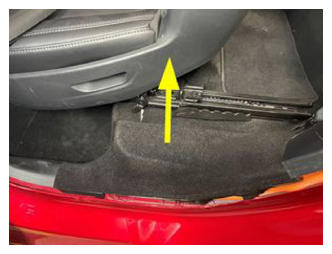

Slide and tilt the LH 2nd row seat fully forward.

Courtesy of TESLA, INC.

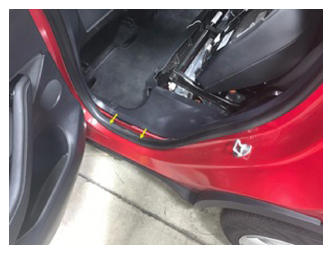

Partially remove the lower portion of the LH rear door seal.

Courtesy of TESLA, INC.

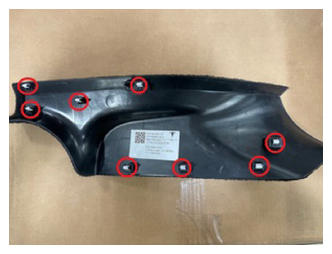

Release the clips (x8) that attach the LH lower C-pillar trim to the vehicle, and then remove the trim from the vehicle.
NOTE: The rear edge is mated with a groove in the trunk side trim.

NOTE: Release the clips at the front of the LH rear sill trim, and then work towards the rear of sill trim.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
