Trim - C-Pillar - Lower - LH (7 Seat) - Remove And Replace: Install

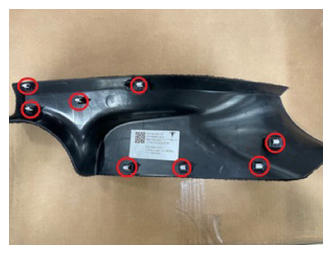

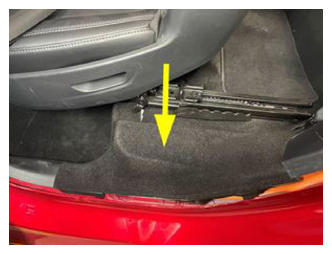

  1. Position the LH lower C-pillar trim to the vehicle, and then install the clips (x8) that attach the trim to the vehicle.
    NOTE: The rear edge is mated with a groove in the trunk side trim.
    G14824351Courtesy of TESLA, INC.
    G14824352Courtesy of TESLA, INC.

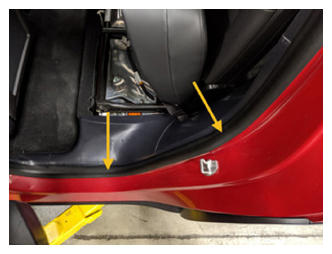

  2. Reseal the LH rear door seal
    NOTE: Seat pillar and sill trim tabs underneath seal
    G14824353Courtesy of TESLA, INC.
  3. Move the LH 2nd row seat to the original position.
  4. Move the driver seat to the original position.
  5. Raise all the windows and close the LH doors.
