Trim - B-Pillar - Upper - LH - Remove And Replace: Remove

  1. Open both LH doors.
  2. Move the LH front seat fully forward.

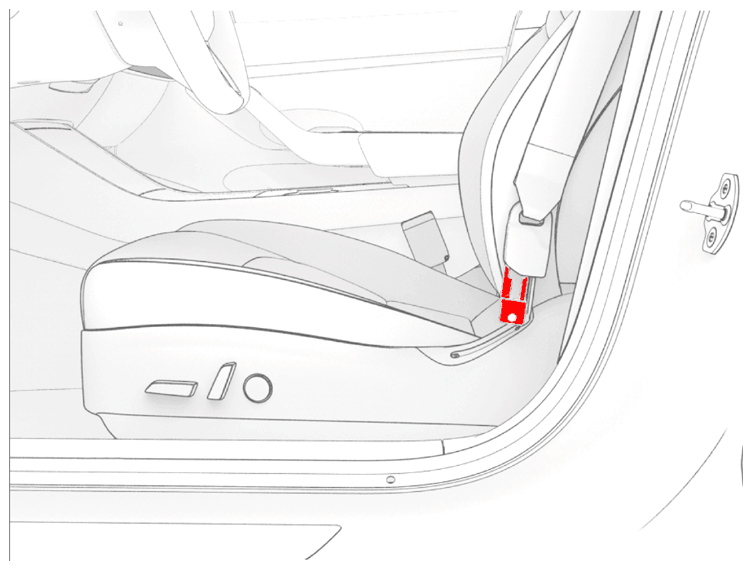

  3. Insert the seat belt release key (1133787-00-A) into the bottom of the seatbelt pretensioner coupling to release the seatbelt from the pretensioner.
    G14824336Courtesy of TESLA, INC.

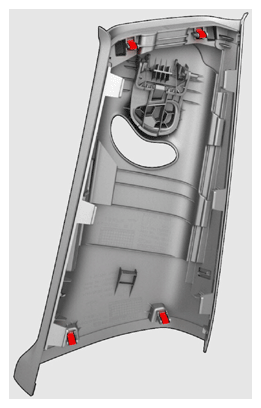

  4. Release the clips that attach the LH upper B-pillar trim to the B-pillar.
    NOTE: Release the bottom clips first, and then release the clips at the top of the trim.
    G14824337Courtesy of TESLA, INC.

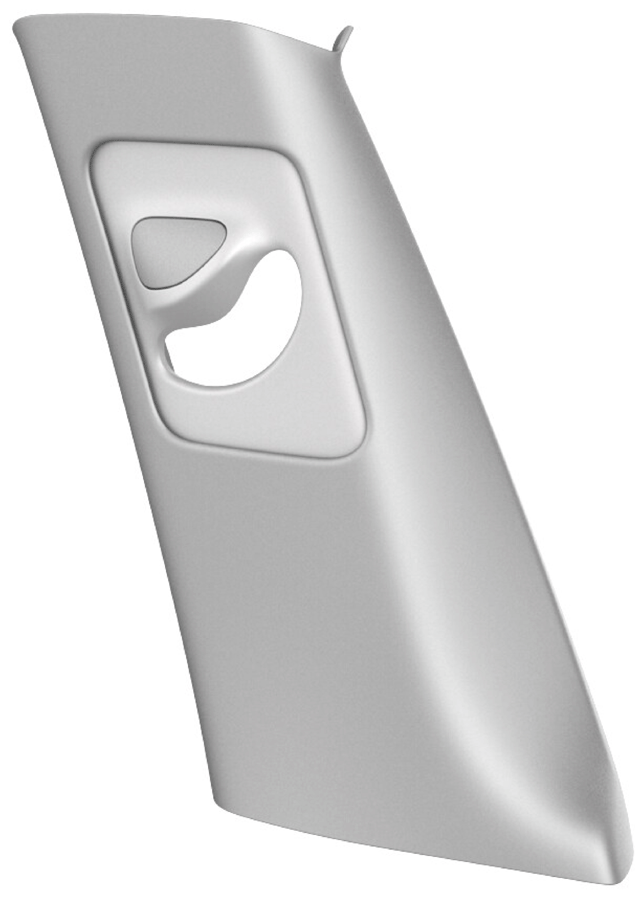

  5. Guide the seatbelt retainer through the LH upper B-pillar trim, and then remove the trim from the vehicle.
    G14824338Courtesy of TESLA, INC.
