- Guide the seatbelt retainer through the LH upper B-pillar trim, and then align the seat belt slider with the trim.
NOTE:
Ensure the seat belt is not twisted.

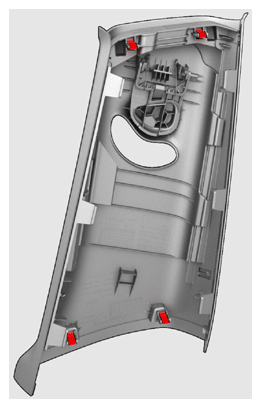

- Insert the top of the LH upper B-pillar trim under the headliner to align the clips, and then press the bottom to fully seat the lower portion of the trim.
NOTE:
Ensure the seal correctly overlaps the trim.
 Courtesy of TESLA, INC.
|

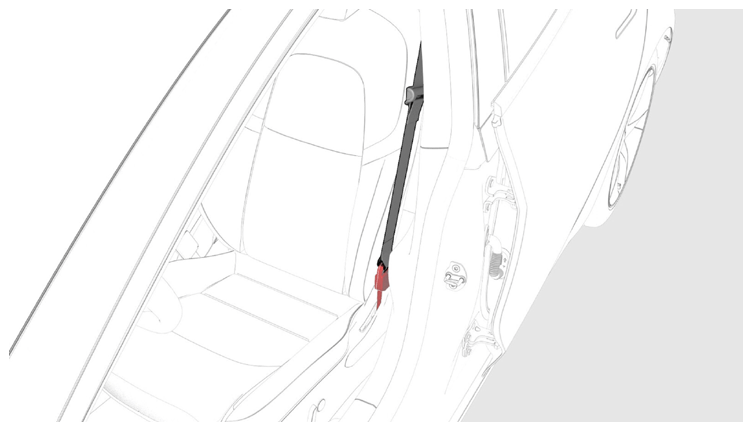

- Install the LH front seatbelt pretensioner coupling onto the LH front seat pretensioner.
NOTE:
Perform a pull-push-pull test to verify the pretensioner and coupling are fully engaged.
 Courtesy of TESLA, INC.
|
- Move the LH front seat to its original position.
- Close both LH doors.
