Trim - B-Pillar - Mid - LH (Structural Pack) - Remove And Replace: Install

  1. Position the LH mid B-pillar trim into the vehicle, and install the screw and fasten the clips (x4) that attach the trim to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket

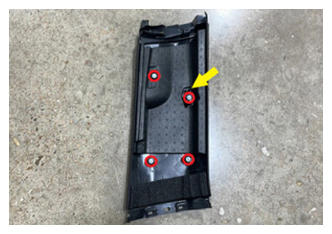

    G14824329Courtesy of TESLA, INC.

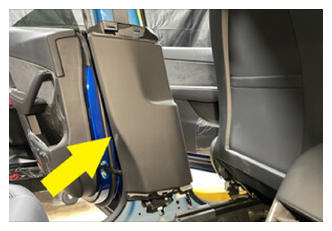

    G14824330Courtesy of TESLA, INC.

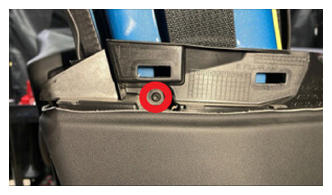

    G14824331Courtesy of TESLA, INC.
  2. Move the LH upper B-pillar assembly into position, and then secure the clips (x4) that attach the trim to the vehicle.
    NOTE: Lower the seat belt slider to align with the B-pillar panel. Insert the top portion of the upper B-pillar trim under the headliner to align the clips. Press the bottom to fully seat the upper B-pillar to lower B-pillar. Make sure the seal correctly overlaps the trim.

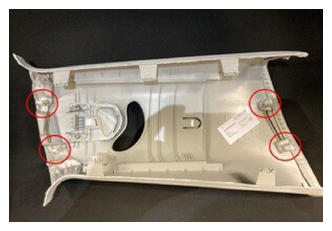

    G14824332Courtesy of TESLA, INC.

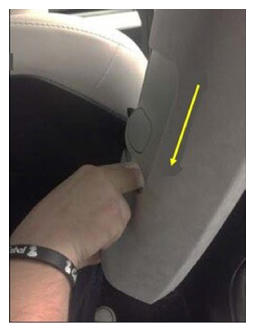

    G14824333Courtesy of TESLA, INC.

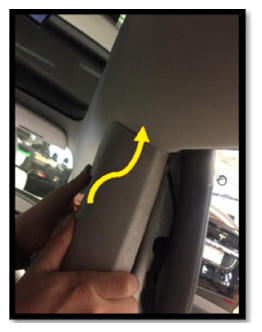

    G14824334Courtesy of TESLA, INC.
  3. Install the LH lower B-pillar trim. See TRIM - B-PILLAR - LOWER - LH (STRUCTURAL PACK) (REMOVE AND REPLACE) .
  4. Move the driver seat to the original position.
