Trim - B-Pillar - Lower - LH (Structural Pack) - Remove And Replace: Remove
- Open LH front door

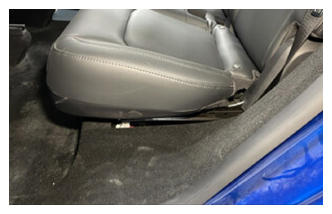

- Move LH front seat forward
- Remove the LH mid A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE)
- Remove the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

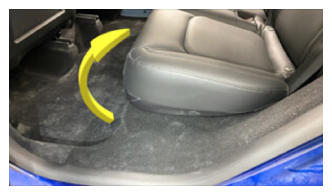

- Release front portion of 2nd row seat cushion

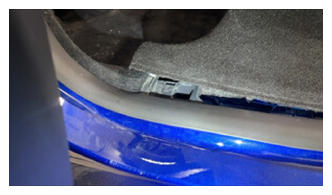

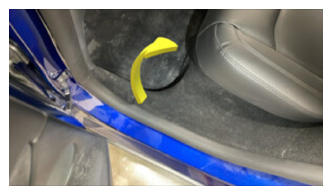

- Release the clips (x2) that attach the front of the LH lower C-pillar trim to the vehicle, and then release the front edge of the trim.

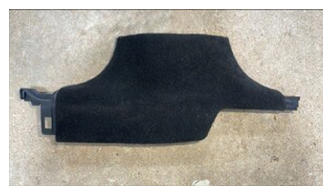

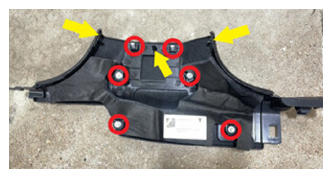

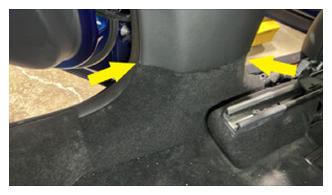

- Remove the clips (x8) that attach the LH lower B-pillar trim to the vehicle, and then remove the trim from the vehicle.
Tip: Start by releasing the top edges of the trim, and then continue to release the remaining clips.
