Trim - B-Pillar - Lower - LH (Structural Pack) - Remove And Replace: Install

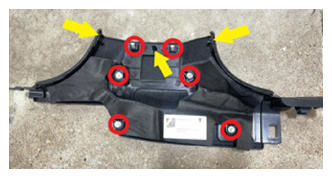

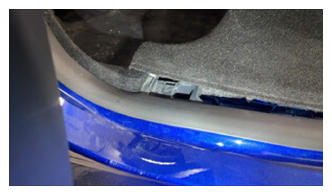

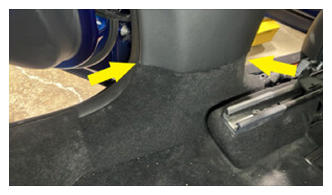

- Position the LH lower B-pillar trim into the vehicle, and then secure the clips that attach the trim to the vehicle.NOTE: Verify the top edges are seated properly and seals are positioned correctly.

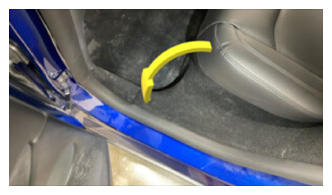

- Secure the clips (x2) that attach the front of the LH lower C-pillar trim to the vehicle.NOTE: Verify the seal is in the correct position.

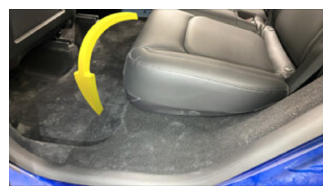

- Secure front portion of 2nd row seat cushion
- Install the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Install the LH mid A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE)

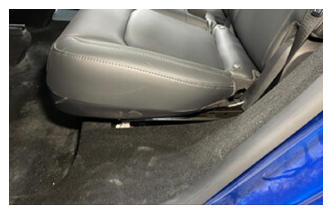

- Move LH front seat to original position
- Close LH front door
