Trim - A-Pillar - Upper - LH - Remove And Replace: Remove

  1. Open the LH front door.
  2. Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  3. Remove the LH middle A-Pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  4. Release the clips that attach the LH upper A-pillar trim to the A-pillar.
    NOTE: Release the top clip first and work forward and down.

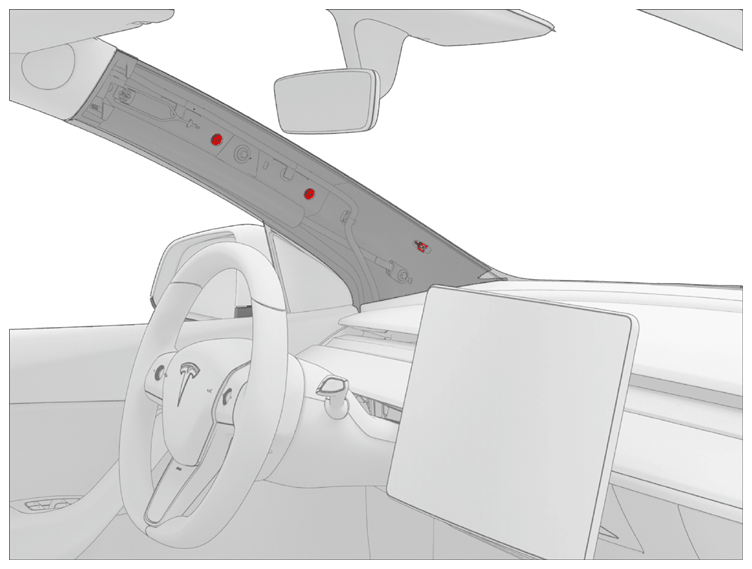

    G14824296Courtesy of TESLA, INC.
  5. Depress the tabs (x2) that attach the LH upper A-Pillar trim tether to the body, and then remove the tether from the body.

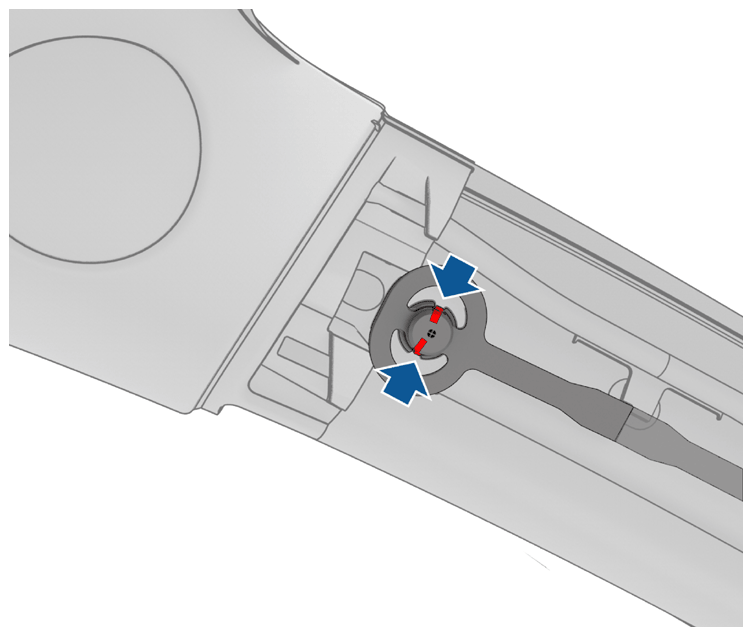

    G14824297Courtesy of TESLA, INC.
  6. Pull upwards to remove the LH upper A-pillar trim from the vehicle.
    NOTE: Remove any remaining LH upper A-pillar trim clips from the LH A-pillar, and if the LH upper A-pillar trim is to be later installed, remove all clips from the trim.

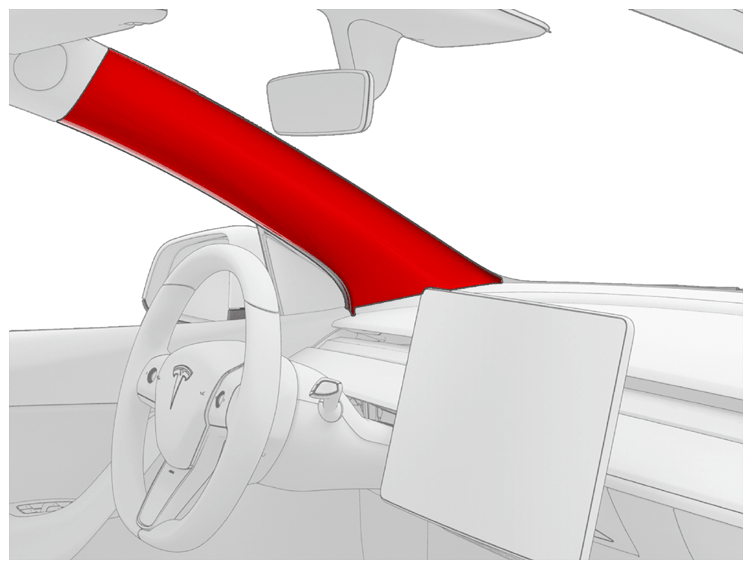

    G14824298Courtesy of TESLA, INC.

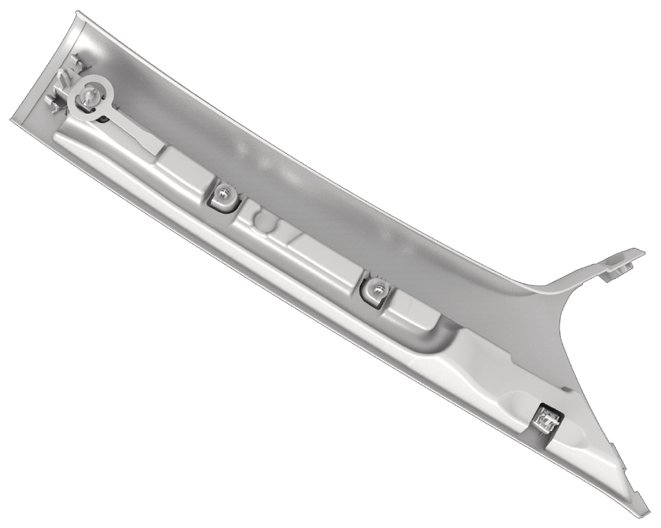

    G14824299Courtesy of TESLA, INC.
