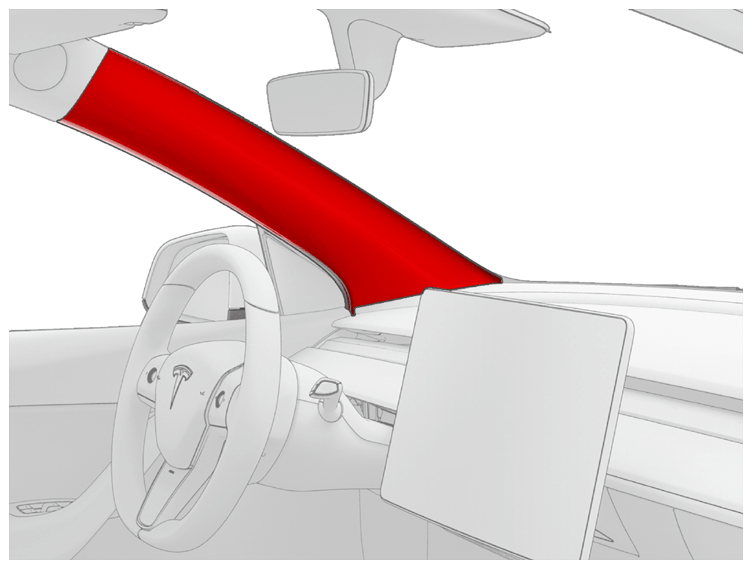

Trim - A-Pillar - Upper - LH - Remove And Replace: Install

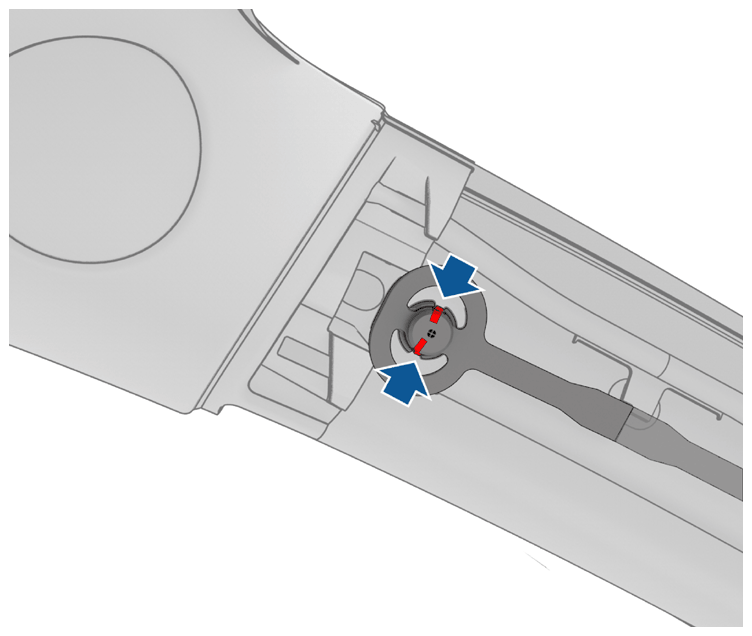

Position the LH upper A-pillar trim tether on the body, and then press the tether into the body to engage the tabs (x2).

Courtesy of TESLA, INC.
Insert the front lower edge of the trim into the instrument panel carrier, and then firmly fasten the clips that attach the LH upper A-pillar trim to the A-pillar.
NOTE: Fasten the bottom clip first, and then work toward the top.

NOTE: Look through the windshield from outside of the vehicle to check that the LH upper A-pillar trim is flush with the A-pillar.

Courtesy of TESLA, INC.
Pull the primary front side body seal over the LH upper A-pillar trim.
Install the LH middle A-Pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
