Trim - A-Pillar - Lower - LH - Remove And Replace: Remove

  1. Open the LH front door.
  2. Remove the LH middle A-Pillar trim panel. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .

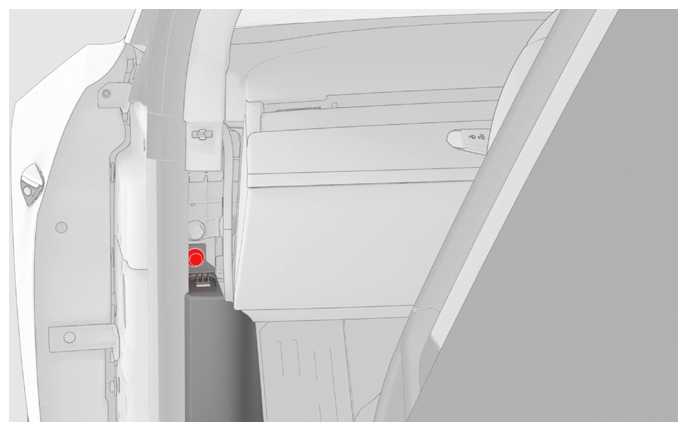

  3. Release the topmost clip on the LH lower A-pillar trim.
    G14824289Courtesy of TESLA, INC.

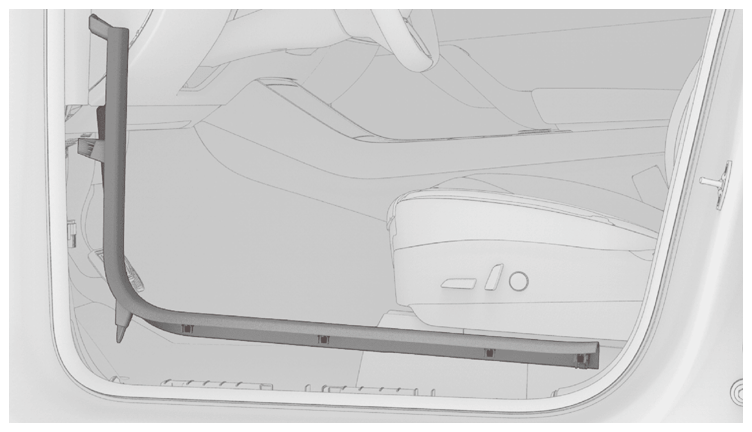

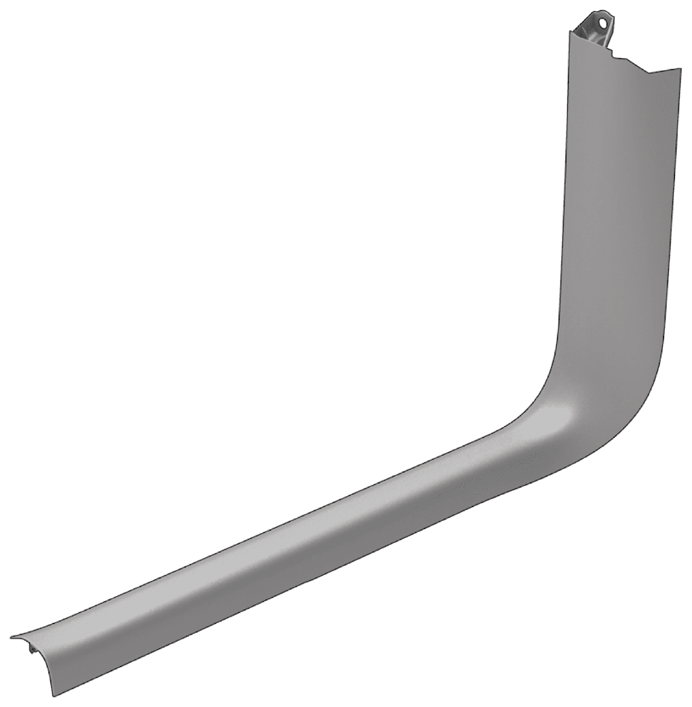

  4. Pull the rearmost part of the LH lower A-pillar trim upward to release the clips and tabs, and then pull the entire trim rearward to remove the trim from the vehicle.
    NOTE: Remove any remaining LH lower A-pillar trim clips from the LH A-pillar and sill, and if the LH lower A-pillar trim is to be later installed, remove all clips from the trim.
    G14824290Courtesy of TESLA, INC.
    G14824291Courtesy of TESLA, INC.
