Bracket - Harness - Sill Panel - Front - LH - Remove And Replace: Remove

  1. Remove the lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  2. Release the bottom of the front door seal from the body of the vehicle.

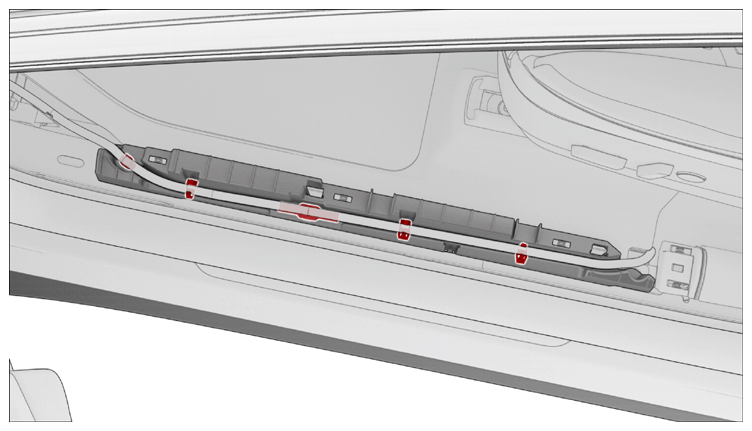

  3. Use a clip prytool to release the clips that attach the front seat harness to the front sill panel harness bracket.
    G14824282Courtesy of TESLA, INC.

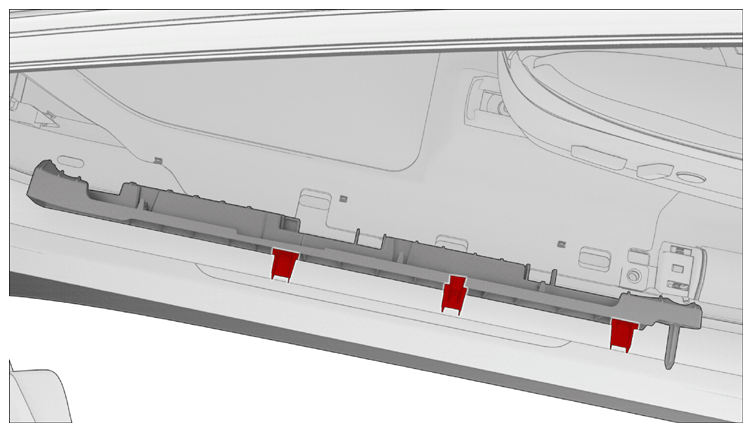

  4. Release the clips that attach the front sill panel harness bracket to the body of the vehicle.
    G14824283Courtesy of TESLA, INC.
