Bracket - C-Pillar - LH - Remove And Replace: Remove

  1. Release the clips that attach the LH upper c-pillar trim to the vehicle and set it aside, but do not separate the trim from the seat belt. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

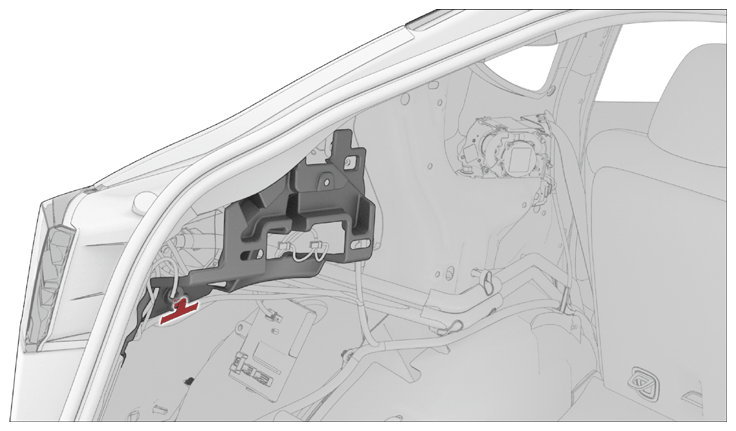

  2. Release the harness clip from the LH C-Pillar bracket.
    G14824274Courtesy of TESLA, INC.

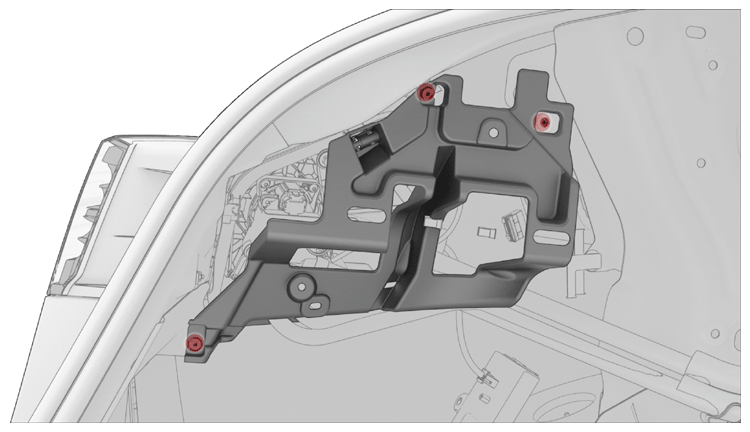

  3. Release the clips (x3) that attach the LH C-Pillar bracket to the vehicle, and then carefully pull the bracket away from the vehicle.
    NOTE: The bracket is still attached to the charge port manual release cable.
    G14824275Courtesy of TESLA, INC.

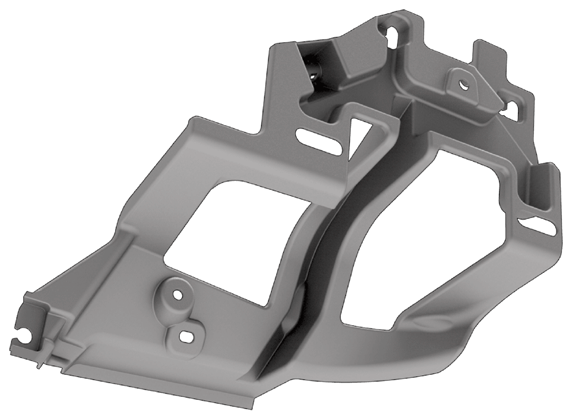

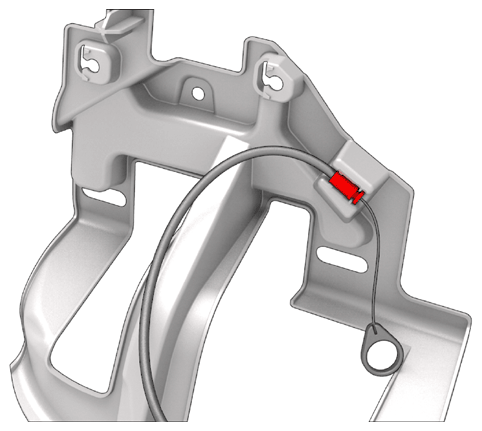

  4. Release the charge port manual release barrel from the LH C-Pillar bracket, and then remove the bracket from the vehicle.
    G14824276Courtesy of TESLA, INC.
    G14824277Courtesy of TESLA, INC.
