Bracket - C-Pillar - LH - Remove And Replace: Install

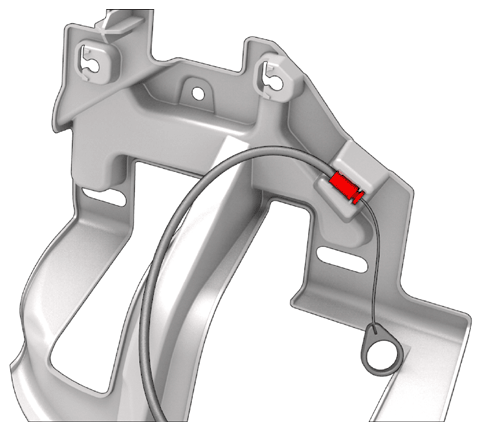

  1. Position the LH C-Pillar bracket on the vehicle, and then install the charge port manual release barrel on the bracket.
    G14824278Courtesy of TESLA, INC.

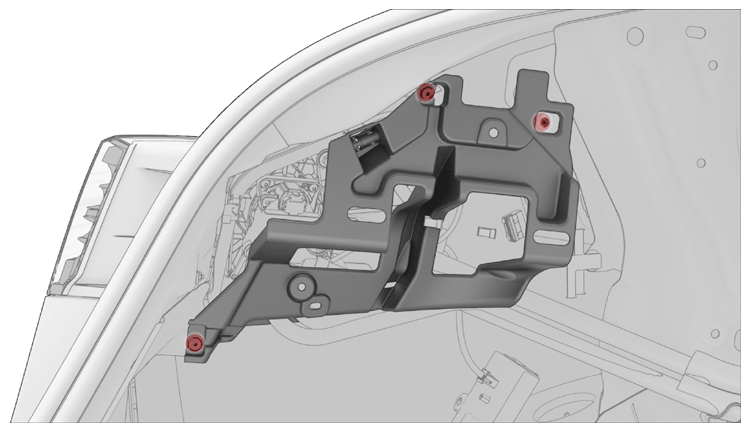

  2. Install the clips (x3) that attach the LH C-Pillar bracket to the vehicle.
    G14824279Courtesy of TESLA, INC.

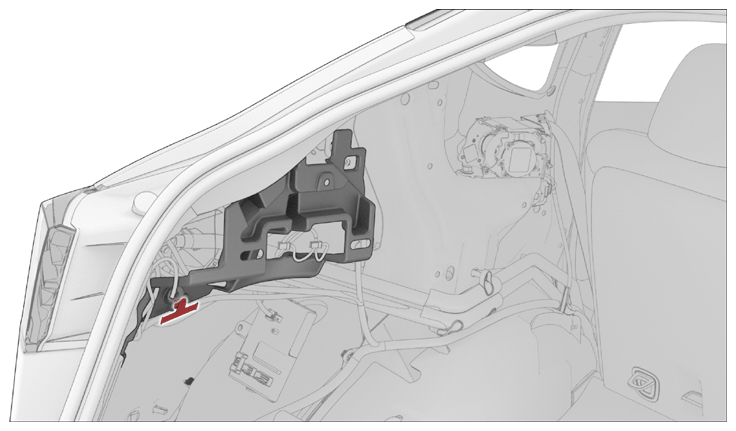

  3. Install the harness clip on the LH C-Pillar bracket.
    G14824280Courtesy of TESLA, INC.
  4. Install the LH C-Pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
