Bezel - Seatbelt - C-Pillar - LH - Remove And Replace: Remove

  1. Open the LH rear door.
  2. Fold the LH 2nd row seat back to the down position.

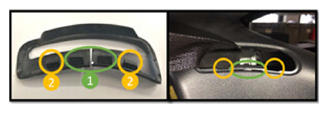

  3. Release the clips (x2) that attach the LH 2nd row seatbelt bezel to the upper C-pillar trim, and then remove the bezel from the seatbelt and trim.
    G14824272Courtesy of TESLA, INC.
