Trim - Side - Trunk - LH - Remove And Replace: Install

Position the LH trunk side trim into the vehicle, and then install the clips (x5) that attach the lower portion of the trim to the vehicle.
NOTE: Guide the front clip stanchions around the LH C-pillar.

NOTE: For 7-seater vehicles, start by tucking the lower portion of the trim around the edge of the LH 3rd row seat back.

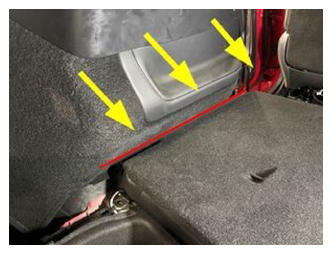

NOTE: 7-seater

Courtesy of TESLA, INC.

NOTE: Trunk side trim lower clips

Courtesy of TESLA, INC.
Connect the electrical connectors (x3), and then install the clips (x6) that attach the upper portion of the LH trunk side trim to the vehicle.
NOTE: 7-seater vehicles have 2 connectors.

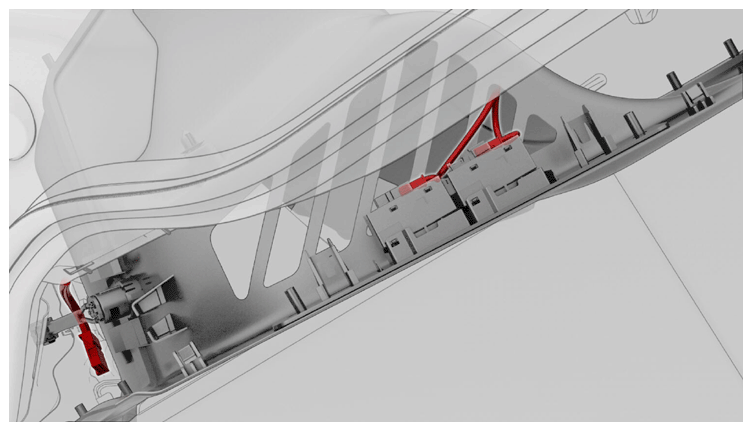

NOTE: 5-seater

Courtesy of TESLA, INC.

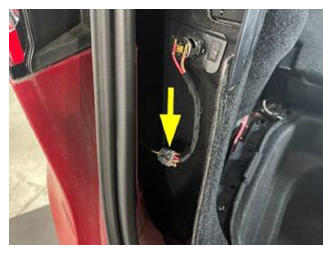

NOTE: 7-seater

Courtesy of TESLA, INC.

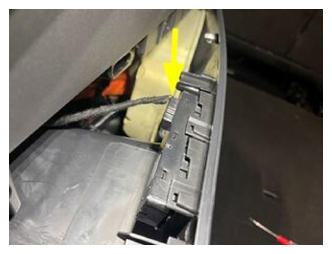

NOTE: 7-seater

Courtesy of TESLA, INC.

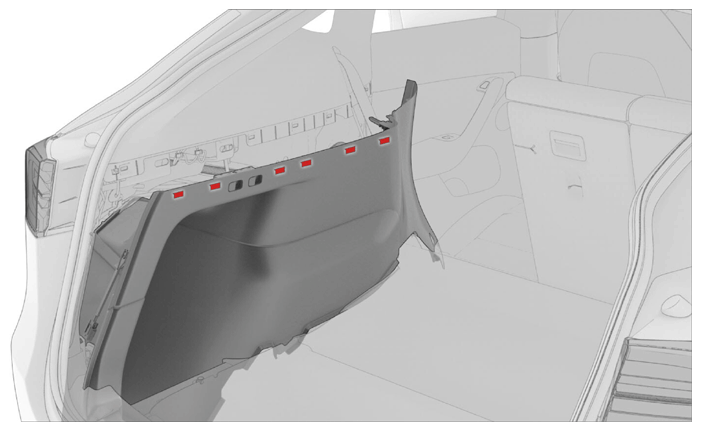

NOTE: Trunk side trim upper clips

Courtesy of TESLA, INC.
Install the LH trunk pocket bracket. See BRACKET - TRUNK POCKET - LH (REMOVE AND REPLACE) .
Install the LH trunk load floor bracket. See BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE) .
Install the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
For 7-seater vehicles, raise the 3rd row seatbacks to the original positions.
Install the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
