Tie Down - Front - LH - Remove And Replace: Remove

  1. Open all doors and lower the windows.
    NOTE: Latch the rear doors to prevent accidental closing.
  2. Remove the LH trunk side trim. See TRIM - SIDE - TRUNK - LH (REMOVE AND REPLACE) .

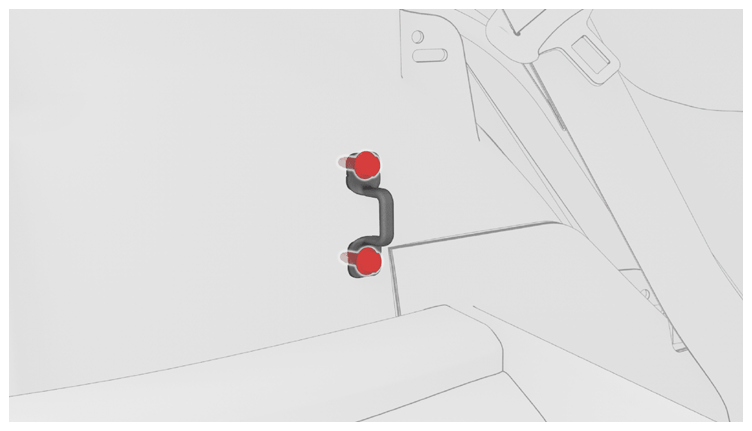

  3. Remove the bolts (x2) that attach the LH front tie down to the vehicle (torque 9 N.m).
    G14824663Courtesy of TESLA, INC.
