Bracket - Trunk Pocket - LH - Remove And Replace: Remove

  1. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  2. Remove the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
  3. Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .
  4. Remove the trunk load floor bracket. See BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE) .
  5. Release the push clip and alignment tabs (x5) that attach the LH trunk pocket bracket to the vehicle, and then remove the bracket from the vehicle.

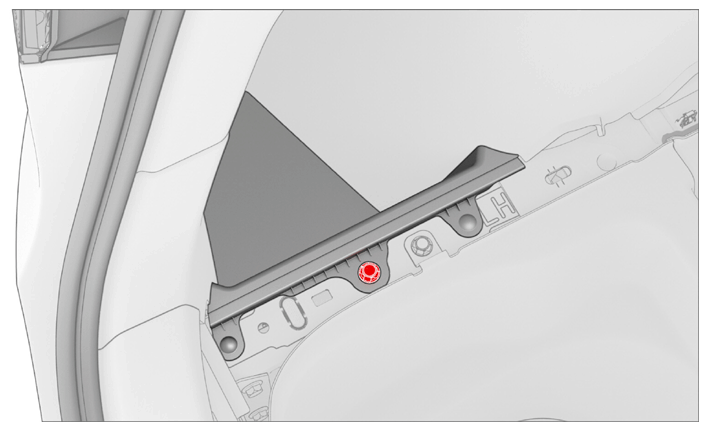

    G14824658Courtesy of TESLA, INC.

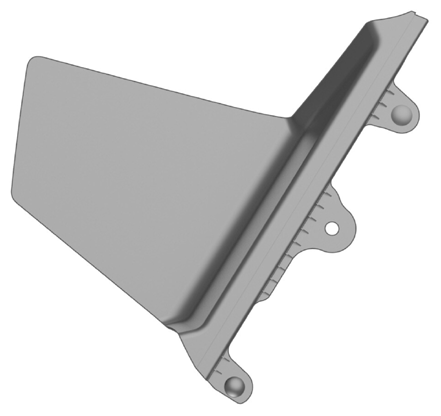

    G14824659Courtesy of TESLA, INC.
