Coat Hook - Rear - LH - Remove And Replace: Remove

  1. Lower the rear headliner. See HEADLINER - REAR (REMOVE AND INSTALL) .

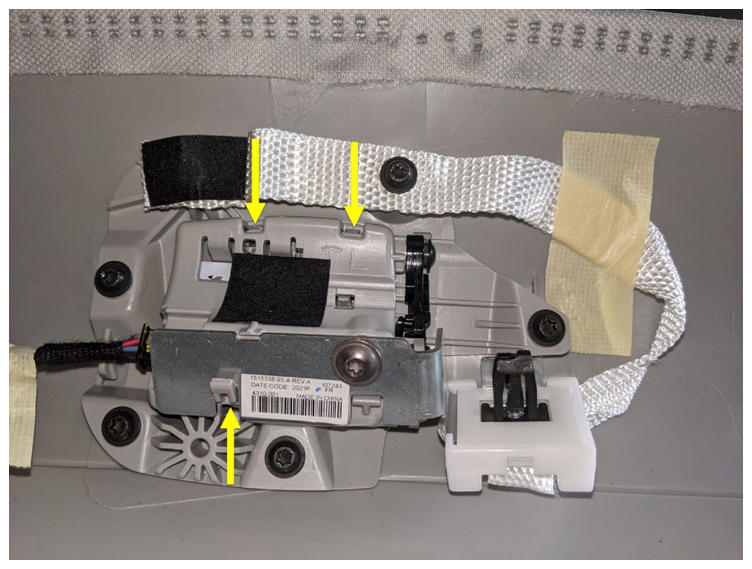

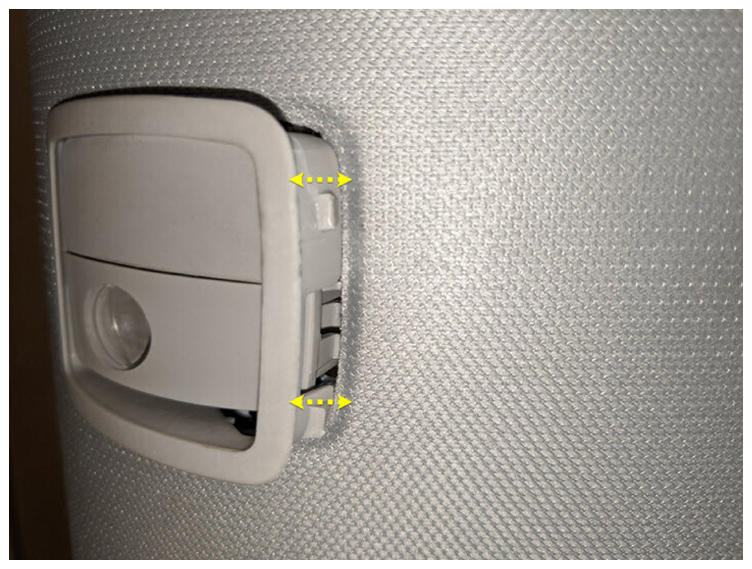

  2. Release the tabs that attach the coat hook to the headliner, and then gently pry the coat hook from the headliner.
    G14824605Courtesy of TESLA, INC.
    G14824606Courtesy of TESLA, INC.

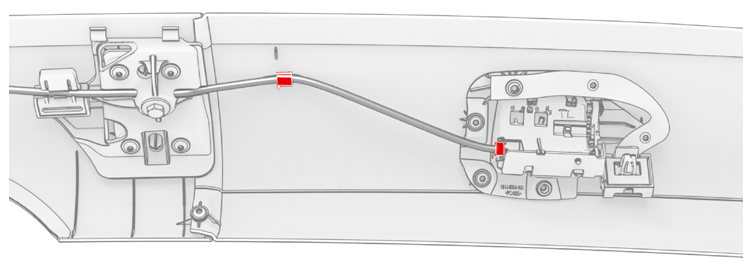

  3. Release the electrical harness from the rear portion of the headliner, and then disconnect the electrical harness from the LH rear map light connector.
    G14824607Courtesy of TESLA, INC.

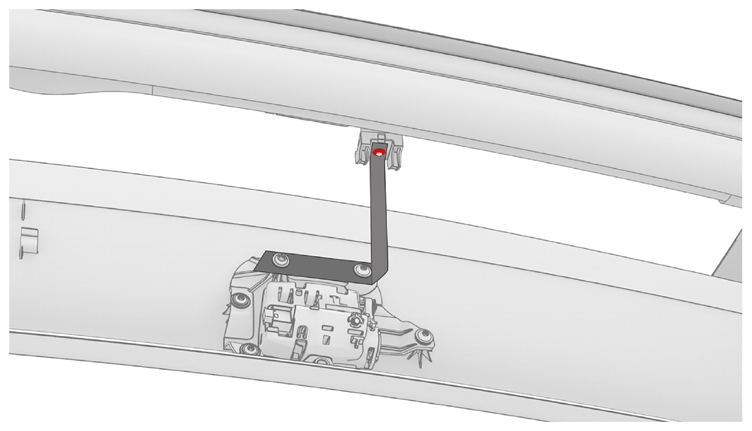

  4. Remove the screw that attaches the LH coat hook tether to the roof clip.

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 bit
    • Wiha TorqueVario-S 0.8 N.m - 2.0 N.m screwdriver (installation only)
    • Wiha 1/4 in bit holder adapter
    G14824608Courtesy of TESLA, INC.

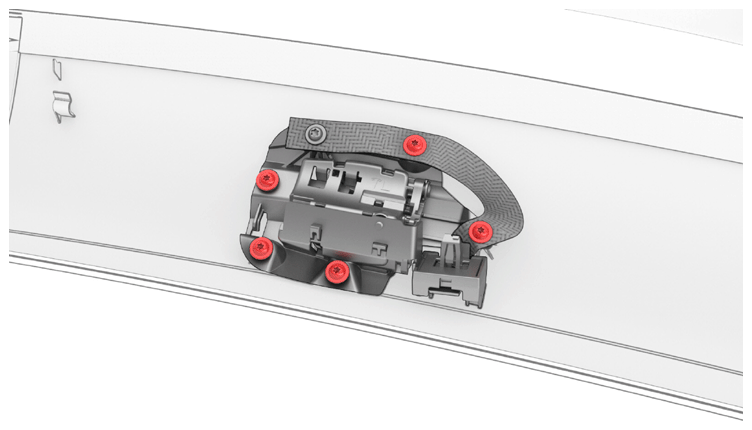

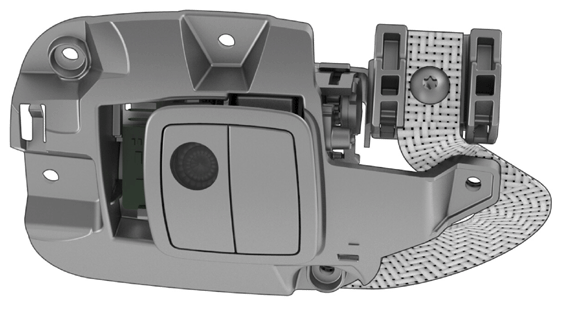

  5. Remove the screws that attach the LH coat hook assembly to the rear headliner, and then remove the assembly from the vehicle.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T20 socket
    • Flex head ratchet/flex head torque wrench
    G14824609Courtesy of TESLA, INC.
    G14824610Courtesy of TESLA, INC.

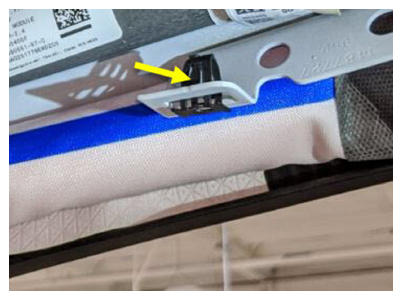

  6. Remove the LH coat hook roof clip from the body.
    G14824611Courtesy of TESLA, INC.
