NVH Stuffer - Quarter Cavity - RH Remove and Replace: Install

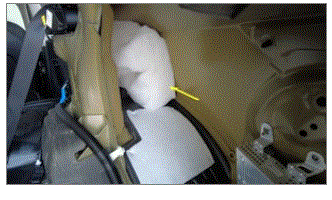

  1. Install the LH quarter cavity NVH stuffer.
    G00663840Courtesy of TESLA, INC.
  2. Install the subwoofer. See SUBWOOFER - REMOVE AND REPLACE .
  3. Install the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH - Remove And Replace .
  4. Install the RH trunk side trim. See Trim - Side - Trunk - LH - Remove And Replace .
  5. Install the RH trunk pocket bracket. See Bracket - Trunk Pocket - LH - Remove And Replace .
  6. Install the RH trunk load floor bracket. See Bracket - Trunk Load Floor - LH - Remove And Replace .
  7. Install the trunk sill trim. See Trim - Sill - Trunk - Remove And Replace .
  8. Install the front trunk load floor. See Trunk Load Floor - Front - Remove And Replace .
  9. Install the rear trunk load floor. See Trunk Load Floor - Rear - Remove And Replace .
  10. Install the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH - Remove And Replace .
  11. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW - 5-SEAT | REMOVE AND REPLACE .
  12. Raise all the windows and close all the doors.
