NVH Stuffer - Quarter Cavity - LH Remove and Replace: Remove

  1. Open all the doors and lower all the windows.
  2. Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW - 5-SEAT | REMOVE AND REPLACE .
  3. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH - Remove And Replace .
  4. Fold the 2nd row 60 seat back down.
  5. Remove the rear trunk load floor. See Trunk Load Floor - Rear - Remove And Replace .
  6. Remove the front trunk load floor. See Trunk Load Floor - Front - Remove And Replace .
  7. Remove the trunk sill trim. See Trim - Sill - Trunk - Remove And Replace .
  8. Remove the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH - Remove And Replace .
  9. Remove the LH trunk pocket bracket. See Bracket - Trunk Pocket - LH - Remove And Replace .
  10. Remove the LH trunk side trim. See Trim - Side - Trunk - LH - Remove And Replace .

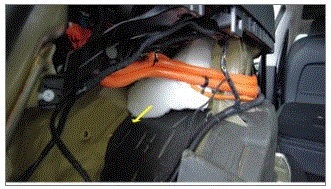

  11. Remove the LH quarter cavity NVH stuffer.
    G00663837Courtesy of TESLA, INC.
    G00663841Courtesy of TESLA, INC.
