NVH Stuffer - Quarter Cavity - LH Remove and Replace: Install

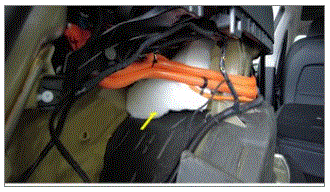

  1. Install the LH quarter cavity NVH stuffer.
    G00663836Courtesy of TESLA, INC.
  2. Install the LH trunk side trim. See Trim - Side - Trunk - LH - Remove And Replace .
  3. Install the LH trunk pocket bracket. See Bracket - Trunk Pocket - LH - Remove And Replace .
  4. Install the LH trunk load floor bracket. See Bracket - Trunk Load Floor - LH - Remove And Replace .
  5. Install the trunk sill trim. See Trim - Sill - Trunk - Remove And Replace .
  6. Install the front trunk load floor. See Trunk Load Floor - Front - Remove And Replace .
  7. Install the rear trunk load floor. See Trunk Load Floor - Rear - Remove And Replace .
  8. Move the 2nd row 60 seat back to the vertical position.
  9. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH - Remove And Replace .
  10. Install the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW - 5-SEAT | REMOVE AND REPLACE .
  11. Raise all the windows and close all the doors.
