Carpet - Rear Trunk - Remove And Replace: Remove

  1. Open all doors and fully lower all windows.
  2. Move the front seats fully forward.
  3. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  4. Remove the RH 2nd row seat back. See Seat Back - 2nd Row - RH (Remove and Replace) .
  5. Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove and Replace) .
  6. Remove the rear trunk carpet. See CARPET - REAR TRUNK (REMOVE AND REPLACE) .
  7. Remove the clips that attach the rear trunk carpet to the vehicle, release the seatbelt from the carpet, and then remove the carpet from the vehicle.

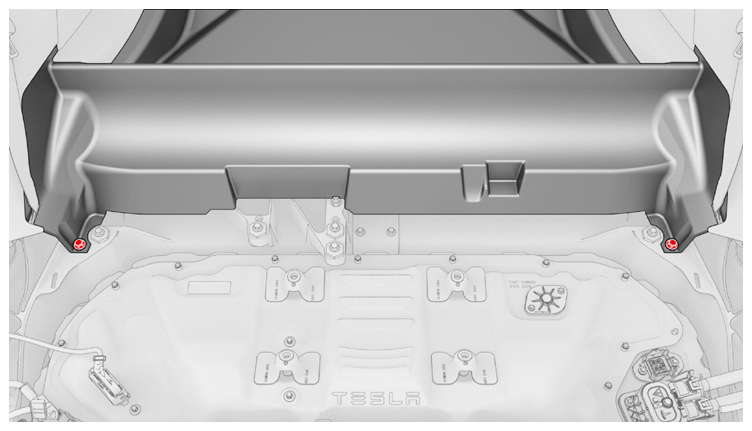

    G14825155Courtesy of TESLA, INC.

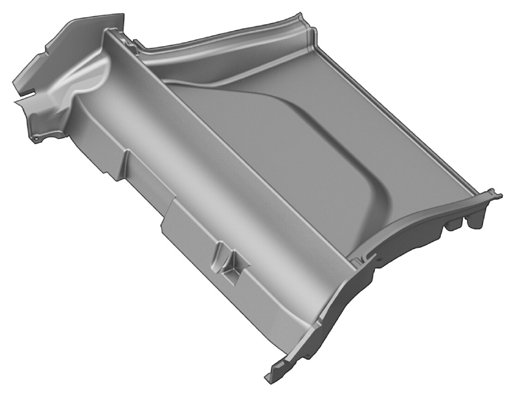

    G14825156Courtesy of TESLA, INC.
