Carpet - Front - RH - Remove And Replace: Install

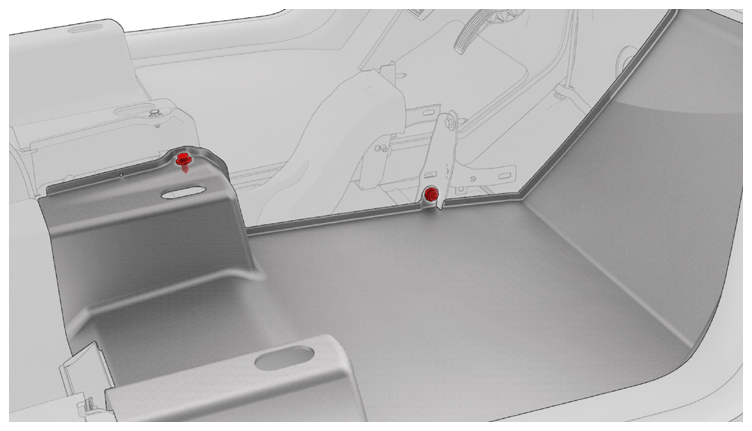

  1. Install the RH front carpet into the vehicle, and then fasten the clips that attach the RH front carpet to the body.
    G14825130Courtesy of TESLA, INC.
  2. Install the center console. See CENTER CONSOLE (REMOVE AND INSTALL) .
  3. Install the front passenger seat. See Seat - Driver (Remove and Replace) .
  4. Install the passenger footwell cover. See Cover - Footwell - Driver (Remove and Replace) .
  5. Close all doors and raise all windows.
