Remove and Install

  1. Open RH front door
  2. Remove RH front floormat
  3. Remove the RH mid A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  4. Remove the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  5. Remove the RH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
  6. Remove the passenger footwell cover. See Cover - Footwell - Passenger (LHD) (Remove and Replace) .
  7. Move RH front seat forward

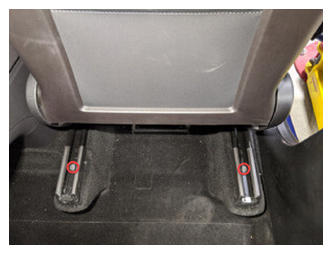

  8. Remove RH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Discard after removal
    G14825132Courtesy of TESLA, INC.
  9. Move RH front seat backward

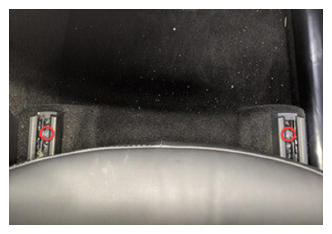

  10. Remove RH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Discard after removal
    G14825133Courtesy of TESLA, INC.

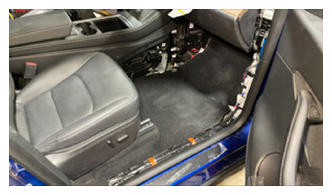

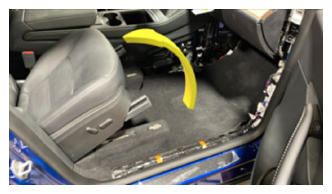

  11. Position RH front seat up and tilt backwards
    NOTE: Carefully lean RH front seat backwards
    G14825134Courtesy of TESLA, INC.
    G14825135Courtesy of TESLA, INC.
  12. Release clips securing RH cabin carpet to cabin support
    NOTE: 2x clips
    G14825136Courtesy of TESLA, INC.
  13. Release clips securing RH front cabin carpet underneath front seat
    NOTE: 4x clips
    G14825137Courtesy of TESLA, INC.

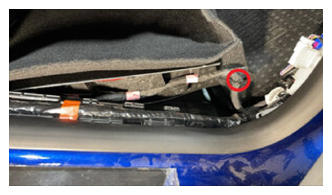

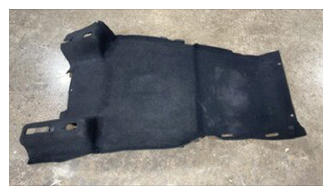

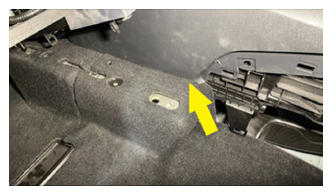

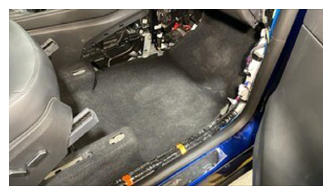

  14. Remove RH front cabin carpet from vehicle
    NOTE: 1x harness clip, Release seat harness clip and harness, Release all edges, Take note of short edge under center console
    G14825138Courtesy of TESLA, INC.
    G14825139Courtesy of TESLA, INC.
    G14825140Courtesy of TESLA, INC.
    G14825141Courtesy of TESLA, INC.
    G14825142Courtesy of TESLA, INC.

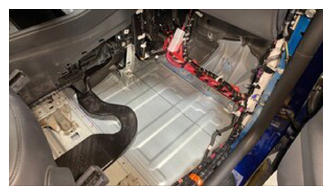

  15. Install RH front cabin carpet into vehicle
    NOTE: 1x harness clip, Position carpet into vehicle, Secure seat harness clip and harness, Secure all edges, Tuck short edge underneath center console
    G14825143Courtesy of TESLA, INC.
    G14825144Courtesy of TESLA, INC.
    G14825145Courtesy of TESLA, INC.
    G14825146Courtesy of TESLA, INC.
    G14825147Courtesy of TESLA, INC.

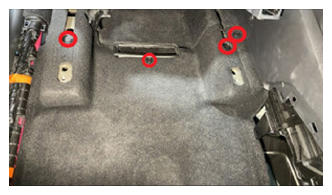

  16. Install clips securing RH front cabin carpet underneath front seat
    NOTE: 4x clips
    G14825148Courtesy of TESLA, INC.

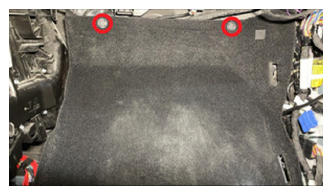

  17. Install clips securing RH cabin carpet to cabin support
    NOTE: 2x push clips, Secure clips and verify fitment of carpet
    G14825149Courtesy of TESLA, INC.

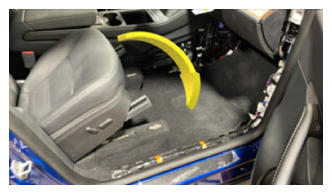

  18. Position RH front seat down and tilt forwards
    NOTE: Carefully return to original position
    G14825150Courtesy of TESLA, INC.
    G14825151Courtesy of TESLA, INC.
  19. Install RH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
    G14825152Courtesy of TESLA, INC.
  20. Move RH front seat forward
  21. Install RH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
    G14825153Courtesy of TESLA, INC.
  22. Move RH front seat to original position
  23. Install the passenger footwell cover. See Cover - Footwell - Passenger (LHD) (Remove and Replace) .
  24. Install the RH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
  25. Install the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  26. Install the RH mid A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
  27. Move RH front seat to original position
  28. Install RH front floormat
  29. Close RH front door
