Home >> Tesla >> 2021 >> Model Y Performance >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Illumination Lights >> Interior Trim (Model Y) >> Carpeting And Mats >> Carpet - Front - RH (7-Seat) - Remove And Replace >> Remove and Install

Remove and Install

  1. Open all four doors
  2. Lower all four windows
  3. Move RH front seat backward

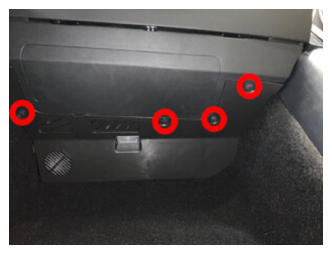

  4. Remove clips securing RH footwell assembly
    NOTE: 4x push clips, Clip count may vary depending on region
    G14825040Courtesy of TESLA, INC.

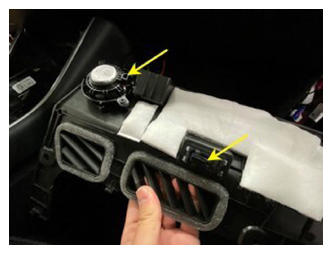

  5. Disconnect RH footwell assembly connectors and remove from vehicle
    NOTE: 2x connectors
    G14825041Courtesy of TESLA, INC.
  6. Remove RH front floormat

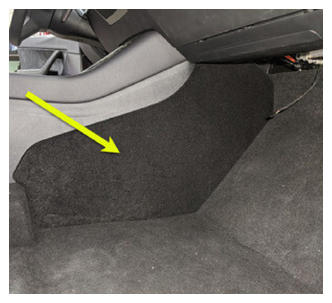

  7. Remove RH console side panel carpet
    NOTE: 12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
    G14825042Courtesy of TESLA, INC.
    G14825043Courtesy of TESLA, INC.

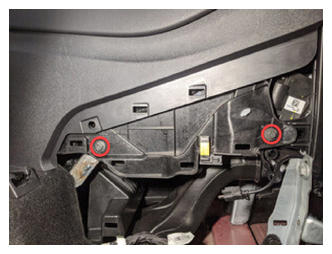

  8. Remove RH front exterior hardware from center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14825044Courtesy of TESLA, INC.

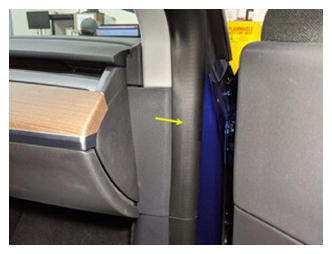

  9. Remove RH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
    G14825045Courtesy of TESLA, INC.
  10. Remove clip securing RH lower A-pillar trim
    NOTE: 1x push clip
    G14825046Courtesy of TESLA, INC.

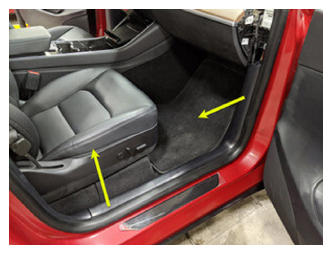

  11. Remove RH lower A-pillar trim
    NOTE: 6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel
    G14825047Courtesy of TESLA, INC.
  12. Release RH front door seal from body

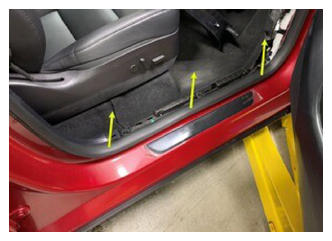

    G14825048Courtesy of TESLA, INC.
  13. Remove clip securing RH front cabin carpet to body
    NOTE: 1x clip
    G14825049Courtesy of TESLA, INC.
  14. Pull RH front cabin carpet away from A-pillar to access RH front seat connector
    G14825050Courtesy of TESLA, INC.
  15. Remove RH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Discard after removal
    G14825051Courtesy of TESLA, INC.
  16. Move RH front seat forward
  17. Raise RH front seat cushion to maximum height
    NOTE: Adjust seat back if needed to avoid contacting headliner

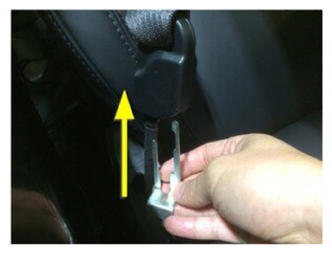

  18. Release seat belt retractor from RH front seat
    NOTE: Insert special removal tool into the bottom of the retractor to release
    G14825052Courtesy of TESLA, INC.

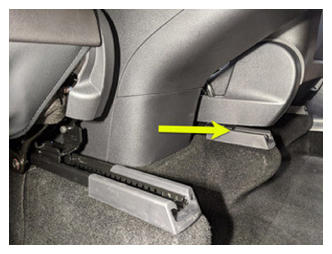

  19. Remove console lower rear panel
    NOTE: 5x clips
    G14825053Courtesy of TESLA, INC.
  20. Remove RH rear exterior hardware from center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14825054Courtesy of TESLA, INC.
  21. Remove RH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Discard after removal
    G14825055Courtesy of TESLA, INC.
  22. Adjust position of RH front seat for easy removal
    NOTE: Move seat to middle of track at most upright position
  23. Move LH front seat backward
  24. Remove LH front floormat

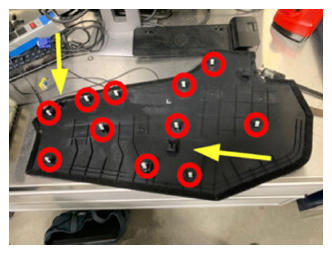

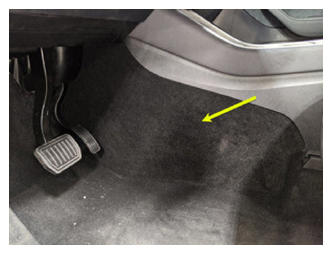

  25. Remove LH console side panel carpet
    NOTE: 11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
    G14825056Courtesy of TESLA, INC.
    G14825057Courtesy of TESLA, INC.
  26. Remove LH front exterior hardware from center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14825058Courtesy of TESLA, INC.
  27. Move LH front seat forward
  28. Raise LH front seat cushion to maximum height
    NOTE: Adjust seat back if needed to avoid contacting headliner

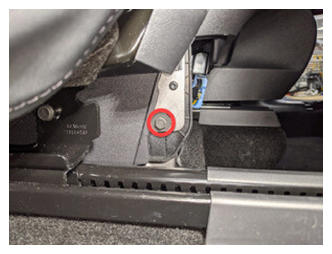

  29. Remove LH rear exterior hardware from center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14825059Courtesy of TESLA, INC.
  30. Open hood
  31. Power off vehicle from center display
    NOTE: Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

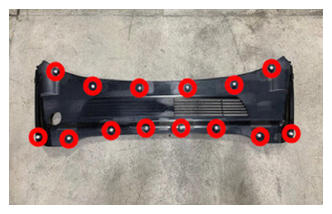

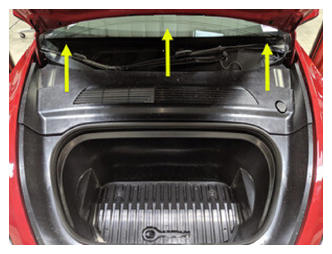

  32. Remove rear apron
    NOTE: 14x clips
    G14825060Courtesy of TESLA, INC.
    G14825061Courtesy of TESLA, INC.

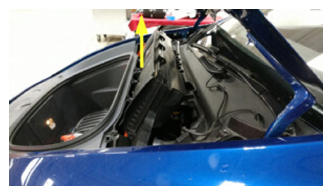

  33. Remove HEPA filter assembly
    NOTE: 2x bolts, 10 mm, 5 N.m, Pivot rearward edge up and past brake reservoir, then lift up to clear frunk assembly
    G14825062Courtesy of TESLA, INC.
    G14825063Courtesy of TESLA, INC.
    G14825064Courtesy of TESLA, INC.

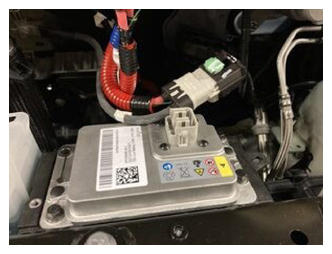

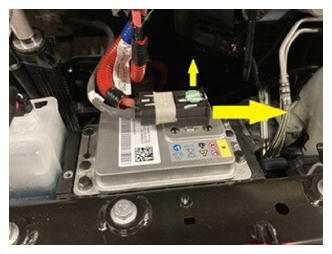

  34. Disconnect LV battery connector and First Responder Loop
    NOTE: 2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge
    G14825065Courtesy of TESLA, INC.
    G14825066Courtesy of TESLA, INC.

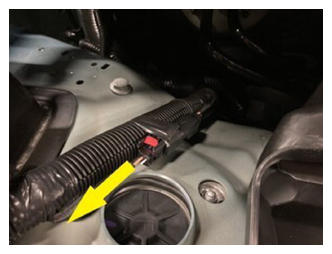

    G14825067Courtesy of TESLA, INC.

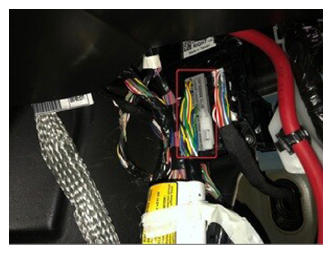

  35. Disconnect RH front seat harness from VC right
    NOTE: 1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC right, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged
    G14825068Courtesy of TESLA, INC.
    G14825069Courtesy of TESLA, INC.
  36. Remove RH front seat harness from RH footwell support bracket
    NOTE: 2x retaining clips
    G14825070Courtesy of TESLA, INC.
    G14825071Courtesy of TESLA, INC.
  37. Release RH front seat harness and guide from body
    NOTE: 3x clips, 1 datum, Datum goes through access hole on RH lower B-pillar
    G14825072Courtesy of TESLA, INC.
    G14825073Courtesy of TESLA, INC.
  38. Pull RH front seat harness from under RH front cabin carpet
    G14825074Courtesy of TESLA, INC.

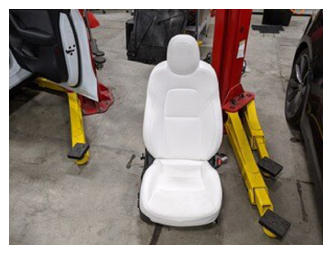

  39. Remove RH front seat from vehicle
    NOTE: Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
    G14825075Courtesy of TESLA, INC.
    G14825076Courtesy of TESLA, INC.
  40. Disconnect USB harness at right front of center console
    NOTE: 1x USB connector
    G14825077Courtesy of TESLA, INC.
  41. Disconnect harness from rear of center console
    NOTE: 1x connector
    G14825078Courtesy of TESLA, INC.

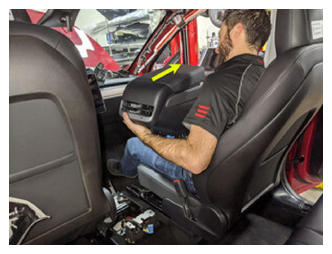

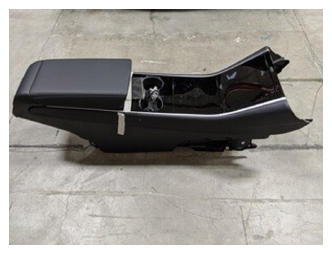

  42. Remove center console from vehicle
    NOTE: Verify rotating lids are in closed position, Recommend assistance, Tilt rear of console upward, Pull assembly towards rear of vehicle
    G14825079Courtesy of TESLA, INC.
    G14825080Courtesy of TESLA, INC.

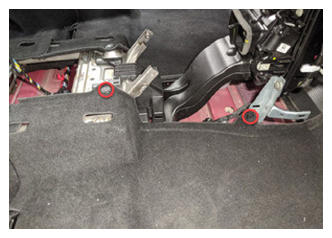

  43. Remove clips securing RH front cabin carpet to vehicle
    NOTE: 2x clips
    G14825081Courtesy of TESLA, INC.

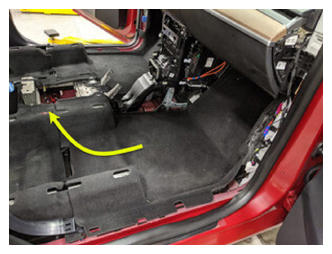

  44. Remove RH front cabin carpet from vehicle
    NOTE: Lift up rear edge of carpet then slide out towards rear of vehicle, be cautious to avoid foam below catching on seat risers
    G14825082Courtesy of TESLA, INC.

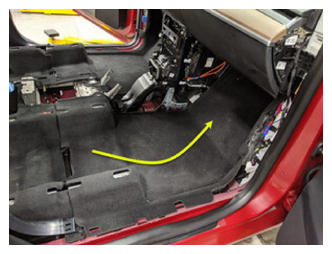

  45. Install RH front cabin carpet
    G14825083Courtesy of TESLA, INC.
  46. Install clips securing RH front cabin carpet to vehicle
    NOTE: 2x push clips
    G14825084Courtesy of TESLA, INC.

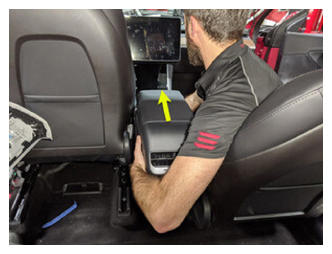

  47. Install center console onto vehicle
    NOTE: Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place
    G14825085Courtesy of TESLA, INC.

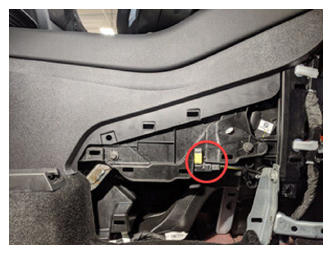

  48. Connect harness at right front of center console
    NOTE: 1x USB connector
    G14825086Courtesy of TESLA, INC.
  49. Install RH front exterior hardware to center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14825087Courtesy of TESLA, INC.

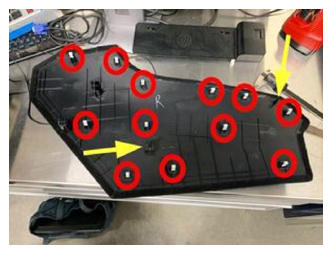

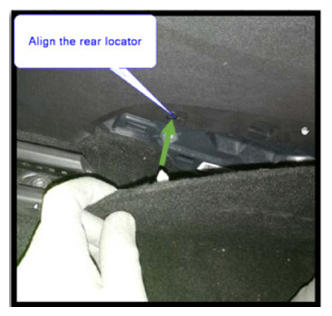

  50. Install RH console side panel carpet
    NOTE: 12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install
    G14825088Courtesy of TESLA, INC.
    G14825089Courtesy of TESLA, INC.

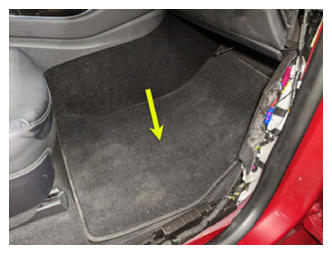

  51. Install RH front floor mat
    G14825090Courtesy of TESLA, INC.
  52. Connect the RH footwell assembly connectors
    NOTE: 2x connectors
    G14825091Courtesy of TESLA, INC.
  53. Install clips securing RH footwell assembly
    NOTE: 4x push clips
    G14825092Courtesy of TESLA, INC.

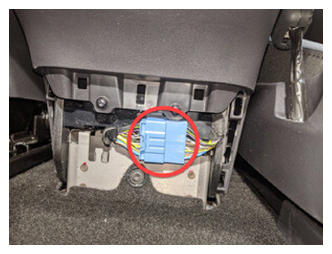

  54. Connect harness to rear of center console
    NOTE: 1x connector
    G14825093Courtesy of TESLA, INC.

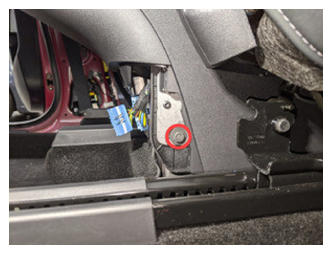

  55. Install RH rear exterior hardware to center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14825094Courtesy of TESLA, INC.
  56. Install LH rear exterior hardware to center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14825095Courtesy of TESLA, INC.

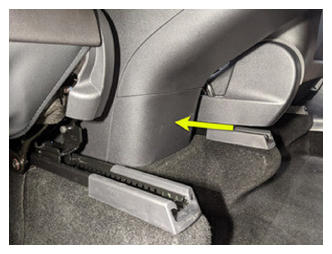

  57. Install console lower rear panel
    NOTE: 5x clips
    G14825096Courtesy of TESLA, INC.

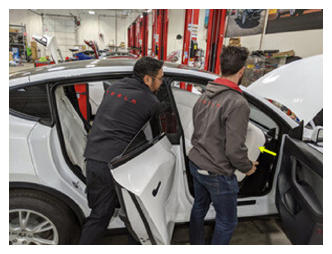

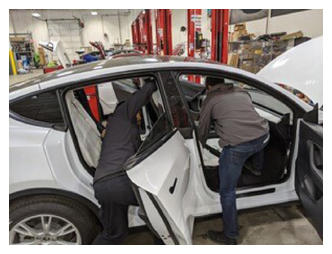

  58. Install RH front seat into vehicle
    NOTE: Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
    G14825097Courtesy of TESLA, INC.
    G14825098Courtesy of TESLA, INC.

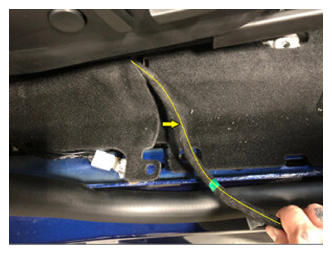

  59. Secure RH front seat harness under RH front cabin carpet
    G14825099Courtesy of TESLA, INC.

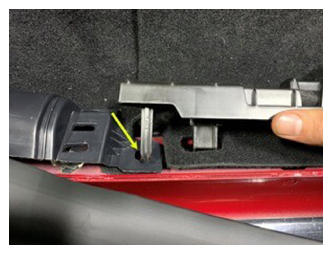

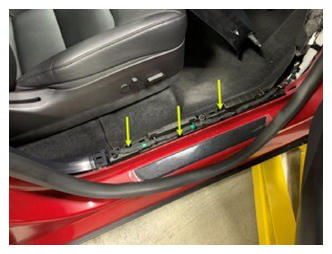

  60. Secure RH front seat harness and guide to body
    NOTE: 3x clips, 1x datum, Datum goes through access hole on RH lower B-pillar
    G14825100Courtesy of TESLA, INC.
    G14825101Courtesy of TESLA, INC.

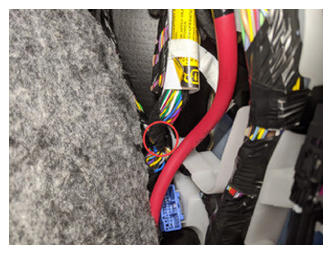

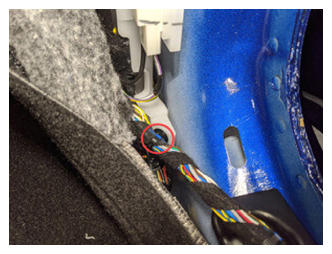

  61. Install RH front seat harness onto RH footwell support bracket
    NOTE: 2x retaining clips
    G14825102Courtesy of TESLA, INC.
    G14825103Courtesy of TESLA, INC.

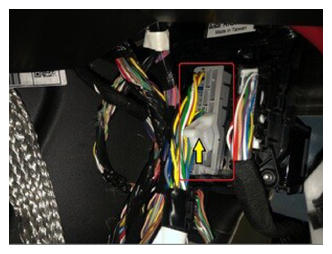

  62. Connect RH front seat harness to VC right
    NOTE: 1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated
    G14825104Courtesy of TESLA, INC.
    G14825105Courtesy of TESLA, INC.

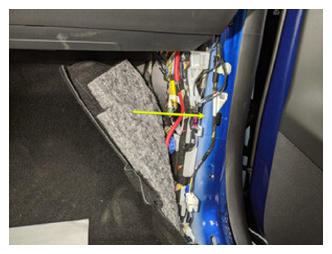

  63. Fully seat RH front cabin carpet
    G14825106Courtesy of TESLA, INC.

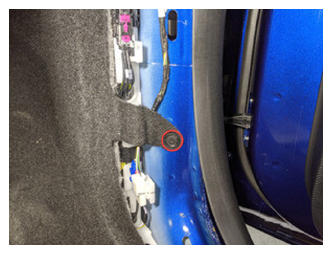

  64. Install clip securing RH front cabin carpet to body
    NOTE: 1x clip
    G14825107Courtesy of TESLA, INC.

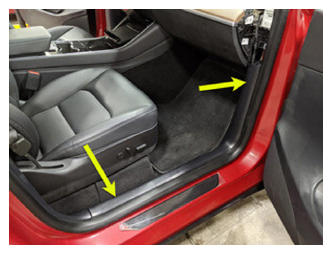

  65. Install RH lower A-pillar trim
    NOTE: 6x clips, 2x locating pins, Align front locating pin first
    G14825108Courtesy of TESLA, INC.

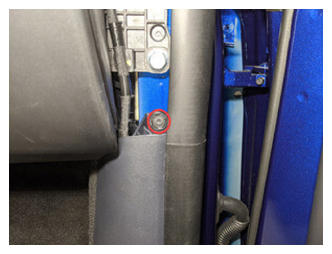

  66. Install clip securing RH lower A-pillar trim
    NOTE: 1x clip
    G14825109Courtesy of TESLA, INC.
  67. Install RH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim
    G14825110Courtesy of TESLA, INC.

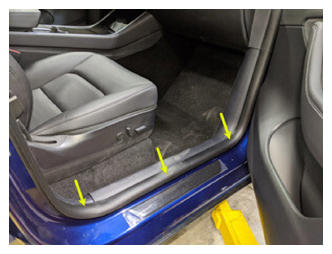

  68. Reseat RH front door seal along lower A-pillar trim
    G14825111Courtesy of TESLA, INC.

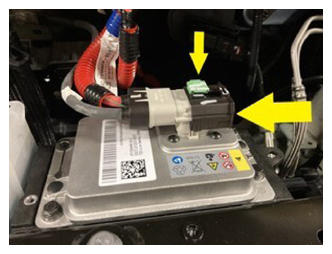

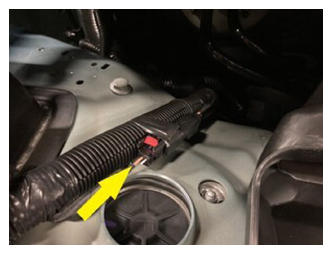

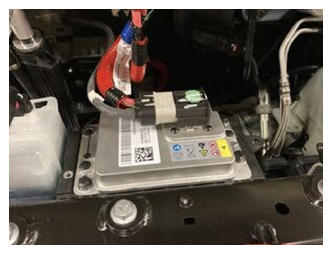

  69. Connect first responder loop and LV battery
    NOTE: 2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
    G14825112Courtesy of TESLA, INC.
    G14825113Courtesy of TESLA, INC.
    G14825114Courtesy of TESLA, INC.

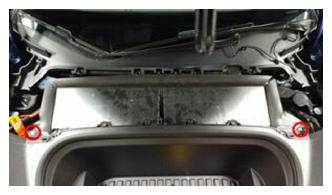

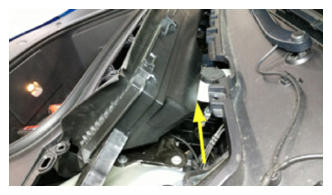

  70. Install HEPA filter assembly
    NOTE: 2x bolts, 10 mm, 5 N.m, Pivot forward edge down past frunk assembly, then carefully move rear edge past brake reservoir and into position
    G14825115Courtesy of TESLA, INC.
    G14825116Courtesy of TESLA, INC.
    G14825117Courtesy of TESLA, INC.

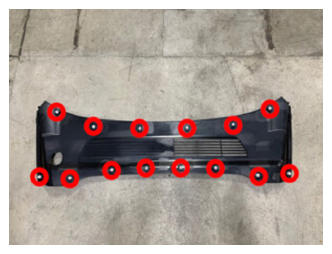

  71. Install rear apron
    NOTE: 14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips
    G14825118Courtesy of TESLA, INC.

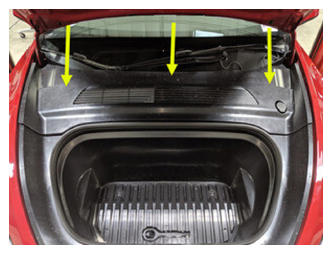

    G14825119Courtesy of TESLA, INC.
  72. Close hood
  73. Move RH front seat backward

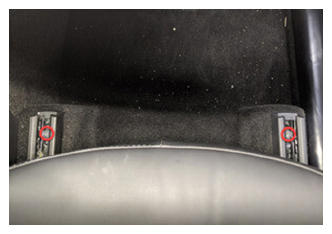

  74. Install RH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
    G14825120Courtesy of TESLA, INC.
  75. Move RH front seat forward

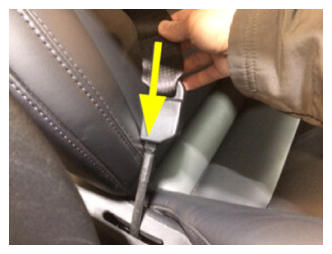

  76. Install RH front seat belt retractor to seat
    NOTE: Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
    G14825121Courtesy of TESLA, INC.

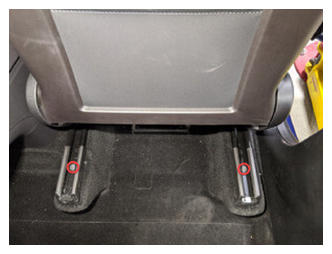

  77. Install RH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
    G14825122Courtesy of TESLA, INC.
  78. Move RH front seat to original position
  79. Move LH front seat backward

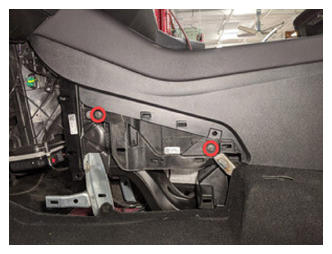

  80. Install LH front exterior hardware to center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14825123Courtesy of TESLA, INC.

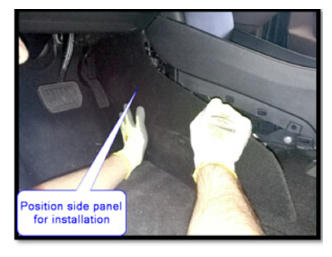

  81. Install LH console side panel carpet
    NOTE: 11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install
    G14825124Courtesy of TESLA, INC.
    G14825125Courtesy of TESLA, INC.

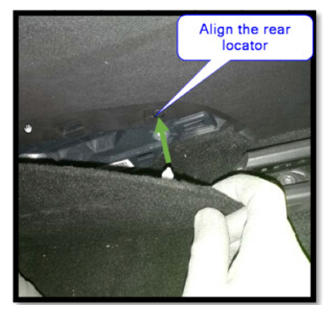

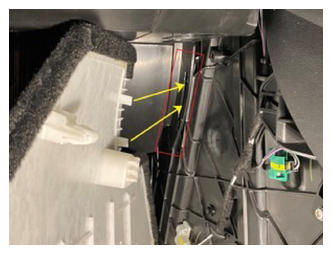

    G14825126Courtesy of TESLA, INC.
    G14825127Courtesy of TESLA, INC.
  82. Install LH front floor mat
  83. Move LH front seat to original position
  84. Raise all four windows
  85. Close all four doors
    NOTE: If 12V is powered up, Unlatch rear doors before closing
