Carpet - Front - LH - Remove And Replace: Install

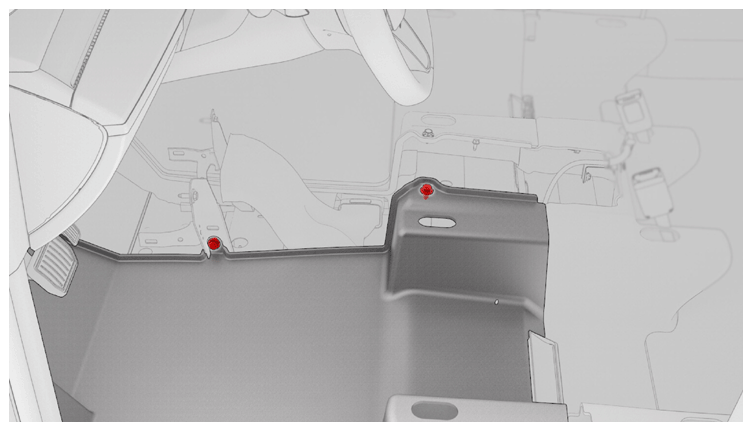

  1. Fasten the clips that attach the LH front carpet to the body.
    G14825003Courtesy of TESLA, INC.
  2. Install the center console. See CENTER CONSOLE (REMOVE AND INSTALL) .
  3. Install the driver seat. See Seat - Driver (Remove and Replace) .
  4. Install the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace) .
  5. Close all doors and raise all windows.
