- Open LH front door
- Remove LH front floormat
- Remove the LH mid A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Remove the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Remove the LH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
- Remove screw and clips securing LH footwell cover
NOTE:
2x push clips, 1x screw, T20, 2.5 N.m
 Courtesy of TESLA, INC.
|
- Remove connectors from LH footwell cover and remove from vehicle
NOTE:
3x tabs, 1x Ethernet connector, 1x puddle light connector
 Courtesy of TESLA, INC.
|
- Move LH front seat forward
- Remove LH front seat rear fasteners
NOTE:
2x patch bolts, T45P, 33.5 N.m, Discard after removal
 Courtesy of TESLA, INC.
|
- Move LH front seat backward
- Remove LH front seat front fasteners
NOTE:
2x patch bolts, T45P, 33.5 N.m, Discard after removal
 Courtesy of TESLA, INC.
|
- Position LH front seat up and tilt backwards
NOTE:
Carefully lean LH front seat backwards
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release clips securing LH cabin carpet to cabin support
NOTE:
2x push clips, 1x vertical clip, Insert clip pry tool outboard of clip and rotate to the right to release one side of clip, Move clip pry tool inboard of clip and rotate to left to fully release carpet clip from cabin support
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Release clips securing LH front cabin carpet underneath front seat
NOTE:
4x clips
 Courtesy of TESLA, INC.
|

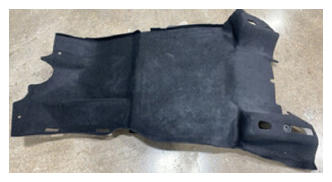

- Remove LH front cabin carpet from vehicle
NOTE:
1x harness clip, Release seat harness clip and harness, Release all edges, Take note of short edge under center console
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH front cabin carpet into vehicle
NOTE:
1x harness clip, Position carpet into vehicle, Secure seat harness clip and harness, Secure all edges, Tuck short edge underneath center console
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install clips securing LH front cabin carpet underneath front seat
NOTE:
4x clips
 Courtesy of TESLA, INC.
|
- Install clips securing LH cabin carpet to cabin support
NOTE:
2x push clips, 1x vertical clip, Secure vertical clip into place first, Verify fitment of carpet
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Position LH front seat down and tilt forwards
NOTE:
Carefully return to original position
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH front seat front fasteners
NOTE:
2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
 Courtesy of TESLA, INC.
|
- Move LH front seat forward
- Install LH front seat rear fasteners
NOTE:
2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
 Courtesy of TESLA, INC.
|
- Move LH front seat to original position
- Install connectors to LH footwell cover and position for installation
NOTE:
3x tabs, 1x Ethernet connector, 1x puddle light connector
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install screw and clips securing LH footwell cover
NOTE:
1x screw, T20, 2.5 N.m, 2x push clips
 Courtesy of TESLA, INC.
|
- Install the LH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
- Install the LH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Install the LH mid A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Close LH front door
