Home >> Tesla >> 2021 >> Model Y Performance >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Interior/Illumination Lights >> Interior Trim (Model Y) >> Carpeting And Mats >> Carpet - Front - LH (7-Seat) - Remove And Replace >> Remove and Install

Remove and Install

  1. Open all four doors
  2. Lower all four windows
  3. Move LH front seat backward

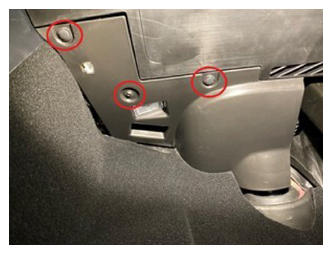

  4. Remove screw and clips securing LH footwell cover
    NOTE: 2x push clips, 1x screw, T20, 2.5 N.m
    G14824908Courtesy of TESLA, INC.

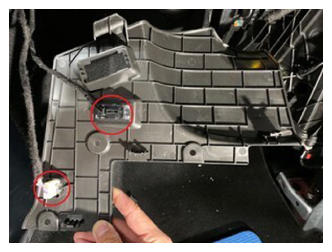

  5. Remove connectors from LH footwell cover and remove from vehicle
    NOTE: 3x tabs, 1x Ethernet connector, 1x puddle light connector
    G14824909Courtesy of TESLA, INC.
  6. Remove LH front floormat

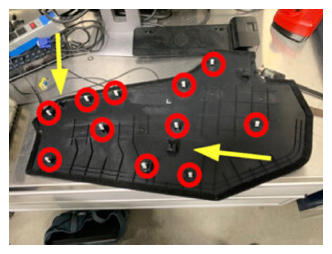

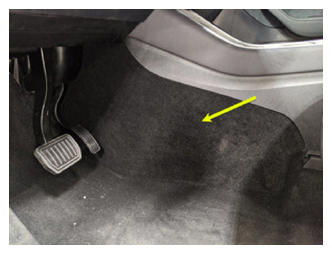

  7. Remove LH console side panel carpet
    NOTE: 11x clips, 2x guide pins, Use trim tool starting at top edge to release upper clips, then pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
    G14824910Courtesy of TESLA, INC.
    G14824911Courtesy of TESLA, INC.

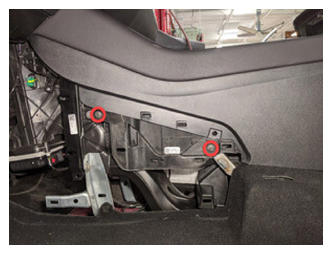

  8. Remove LH front exterior hardware from center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14824912Courtesy of TESLA, INC.

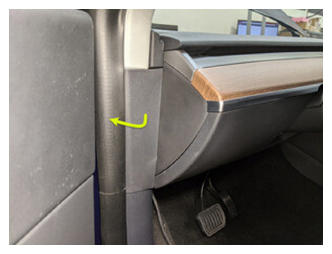

  9. Remove LH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove
    G14824913Courtesy of TESLA, INC.

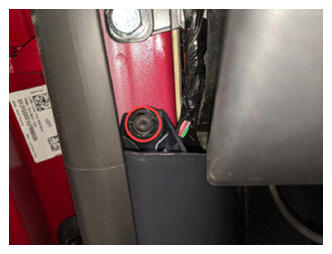

  10. Remove clip securing LH lower A-pillar trim
    NOTE: 1x push clip
    G14824914Courtesy of TESLA, INC.
  11. Remove LH lower A-pillar trim
    NOTE: 6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel
    G14824915Courtesy of TESLA, INC.

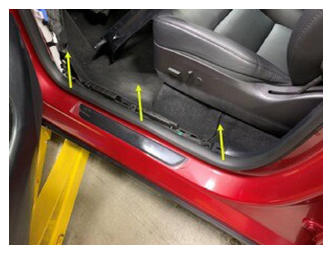

  12. Release LH front door seal from body
    G14824916Courtesy of TESLA, INC.

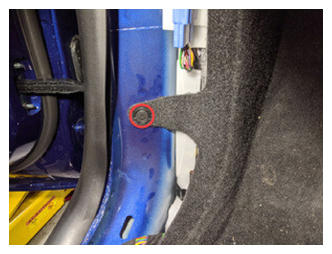

  13. Remove clip securing LH front cabin carpet to body
    NOTE: 1x clip
    G14824917Courtesy of TESLA, INC.
  14. Pull LH front cabin carpet away from A-pillar to access LH front seat connector
    G14824918Courtesy of TESLA, INC.

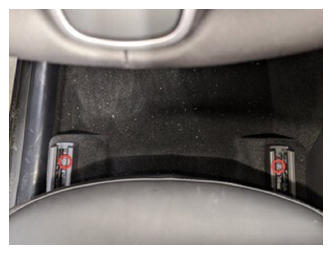

  15. Remove LH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Discard after removal
    G14824919Courtesy of TESLA, INC.
  16. Move LH front seat forward

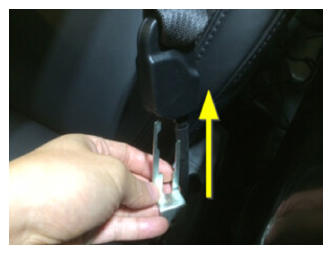

  17. Release seat belt retractor from LH front seat
    NOTE: Insert special removal tool into the bottom of the retractor to release
    G14824920Courtesy of TESLA, INC.

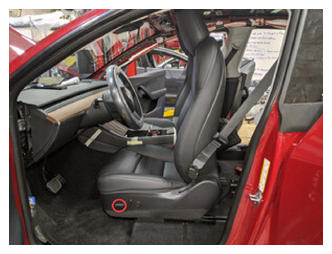

  18. Raise LH front seat cushion to maximum height
    NOTE: Adjust seat back if needed to avoid contacting headliner
    G14824921Courtesy of TESLA, INC.

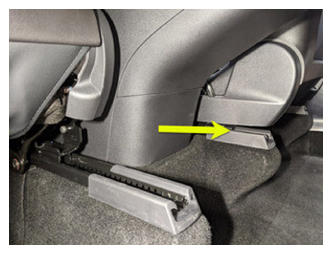

  19. Remove console lower rear panel
    NOTE: 5x clips
    G14824922Courtesy of TESLA, INC.

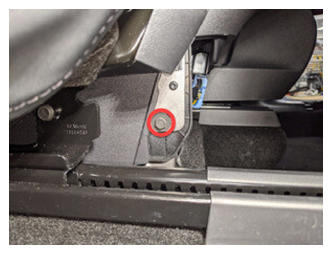

  20. Remove LH rear exterior hardware from center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14824923Courtesy of TESLA, INC.

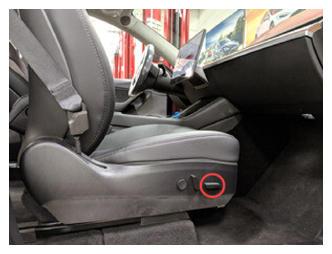

  21. Move RH front seat forward
    G14824924Courtesy of TESLA, INC.

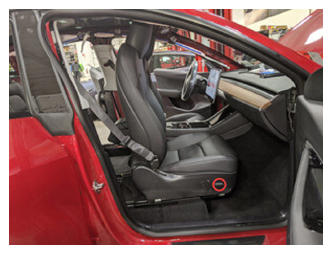

  22. Raise RH front seat cushion to maximum height
    NOTE: Adjust seat back if needed to avoid contacting headliner
    G14824925Courtesy of TESLA, INC.
  23. Remove RH rear exterior hardware from center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14824926Courtesy of TESLA, INC.
  24. Move RH front seat backward
  25. Move RH front seat to lowest position
  26. Remove RH front floormat

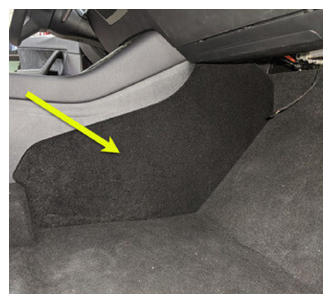

  27. Remove RH console side panel carpet
    NOTE: 12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged
    G14824927Courtesy of TESLA, INC.
    G14824928Courtesy of TESLA, INC.

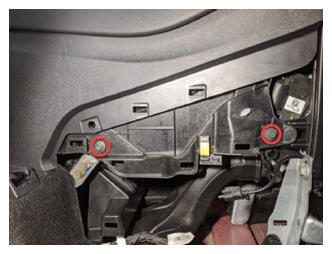

  28. Remove RH front exterior hardware from center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14824929Courtesy of TESLA, INC.
  29. Remove LH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Discard after removal
    G14824930Courtesy of TESLA, INC.

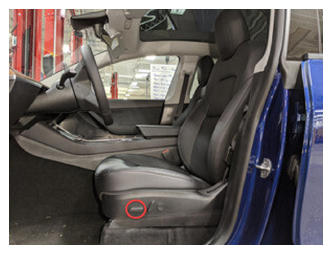

  30. Adjust position of LH front seat for easy removal
    NOTE: Move seat to middle of track at most upright position
    G14824931Courtesy of TESLA, INC.
  31. Open hood
  32. Power off vehicle from center display
    NOTE: Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box

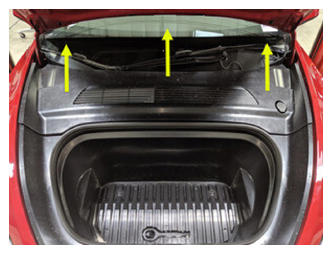

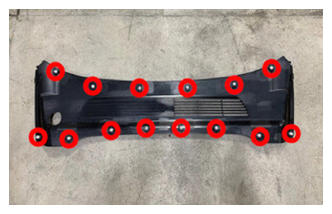

  33. Remove rear apron
    NOTE: 14x clips
    G14824932Courtesy of TESLA, INC.
    G14824933Courtesy of TESLA, INC.

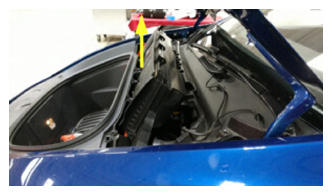

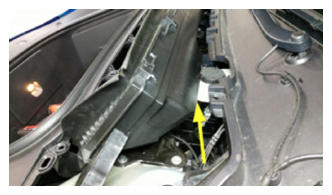

  34. Remove HEPA filter assembly
    NOTE: 2x bolts, 10 mm, 5 N.m, Pivot rearward edge up and past brake reservoir, then lift up to clear frunk assembly
    G14824934Courtesy of TESLA, INC.
    G14824935Courtesy of TESLA, INC.
    G14824936Courtesy of TESLA, INC.

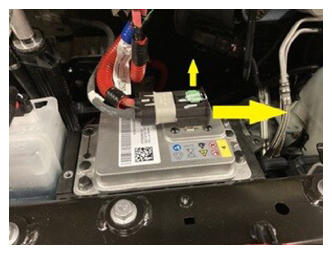

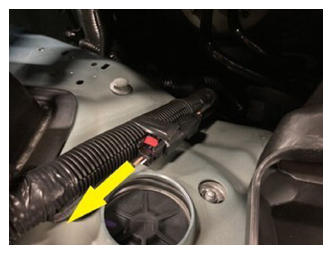

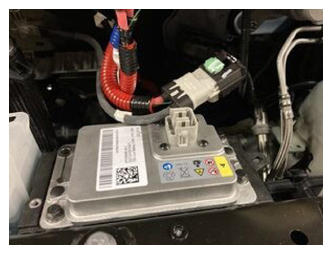

  35. Disconnect LV battery connector and First Responder Loop
    NOTE: 2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL, Allow 2 minutes for all electrical circuits to fully discharge
    G14824937Courtesy of TESLA, INC.
    G14824938Courtesy of TESLA, INC.
    G14824939Courtesy of TESLA, INC.
  36. Disconnect LH front seat harness from VC left
    NOTE: 1x electrical connector, Release the lock by squeezing the release tab, Then fully disengage the lock by moving it away from the VC left, Do not force the connector, If the connector does not easily release from the VC the lock is still engaged
    G14824940Courtesy of TESLA, INC.
    G14824941Courtesy of TESLA, INC.

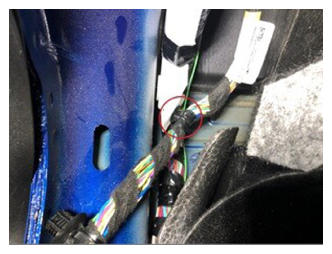

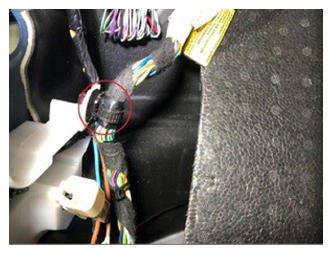

  37. Remove LH front seat harness from LH footwell support bracket
    NOTE: 2x retaining clips
    G14824942Courtesy of TESLA, INC.
    G14824943Courtesy of TESLA, INC.

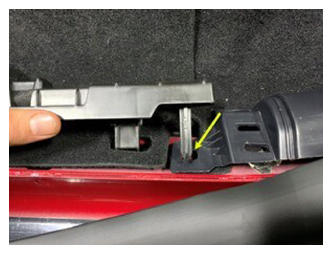

  38. Release LH front seat harness and guide from body
    NOTE: 3x clips, 1 datum, Datum goes through access hole on LH lower B-pillar
    G14824944Courtesy of TESLA, INC.
    G14824945Courtesy of TESLA, INC.

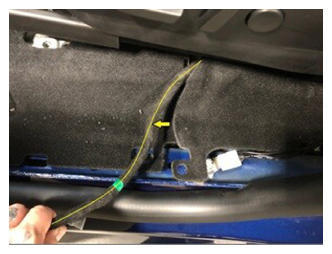

  39. Pull LH front seat harness from under LH front cabin carpet
    G14824946Courtesy of TESLA, INC.

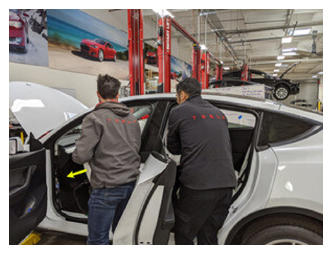

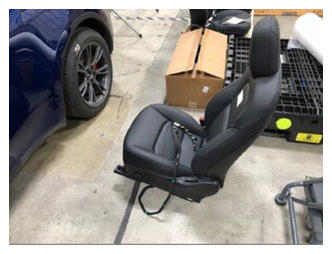

  40. Remove LH front seat from vehicle
    NOTE: Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
    G14824947Courtesy of TESLA, INC.
    G14824948Courtesy of TESLA, INC.

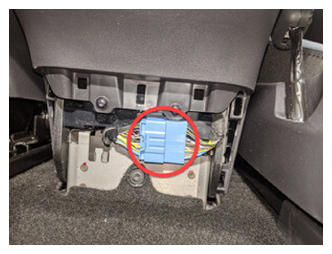

  41. Disconnect harness from rear of center console
    NOTE: 1x connector
    G14824949Courtesy of TESLA, INC.
  42. Disconnect USB harness at right front of center console
    NOTE: 1x USB connector
    G14824950Courtesy of TESLA, INC.

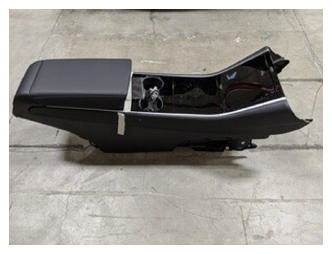

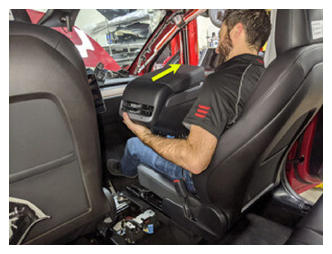

  43. Remove center console from vehicle
    NOTE: Verify rotating lids are in closed position, Recommend assistance, Tilt rear of console upward, Pull assembly towards rear of vehicle
    G14824951Courtesy of TESLA, INC.
    G14824952Courtesy of TESLA, INC.

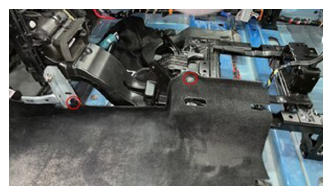

  44. Remove clips securing LH front cabin carpet to vehicle
    NOTE: 2x clips
    G14824953Courtesy of TESLA, INC.
  45. Remove LH front cabin carpet from vehicle
    NOTE: Lift up rear edge of carpet then slide out towards rear of vehicle, be cautious and avoid foam below catching on seat risers
    G14824954Courtesy of TESLA, INC.

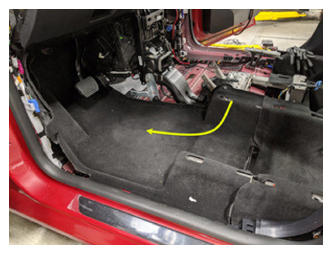

  46. Install LH front cabin carpet
    G14824955Courtesy of TESLA, INC.
  47. Install clips securing the LH front cabin carpet to vehicle
    NOTE: 2x clips
    G14824956Courtesy of TESLA, INC.

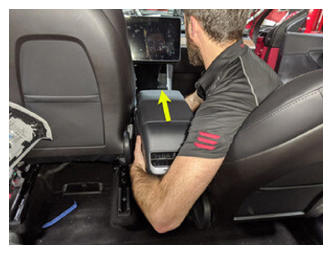

  48. Install center console onto vehicle
    NOTE: Recommend assistance, Tilt front of console downward, Slide assembly towards front of vehicle and tilt rear of console down into place
    G14824957Courtesy of TESLA, INC.

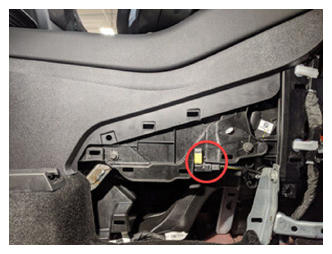

  49. Connect harness at right front of center console
    NOTE: 1x USB connector
    G14824958Courtesy of TESLA, INC.
  50. Install RH front exterior hardware to center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14824959Courtesy of TESLA, INC.

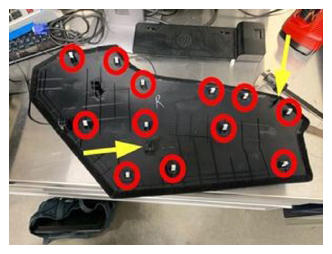

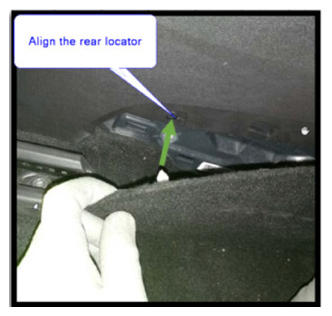

  51. Install RH console side panel carpet
    NOTE: 12x clips, 2x locating pins, Position side panel and align the front locator, then the rear locator, Push side panel towards console to install
    G14824960Courtesy of TESLA, INC.
    G14824961Courtesy of TESLA, INC.
  52. Install RH front floor mat
  53. Connect harness to rear of center console
    NOTE: 1x connector
    G14824962Courtesy of TESLA, INC.
  54. Install LH rear exterior hardware to center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14824963Courtesy of TESLA, INC.

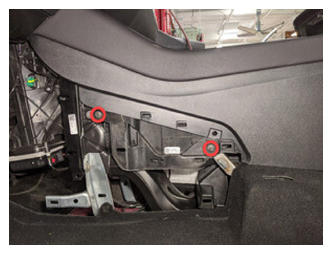

  55. Install LH front exterior hardware to center console
    NOTE: 2x bolts, 10 mm, 7 N.m
    G14824964Courtesy of TESLA, INC.

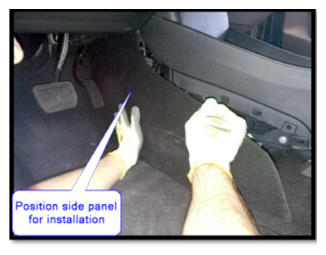

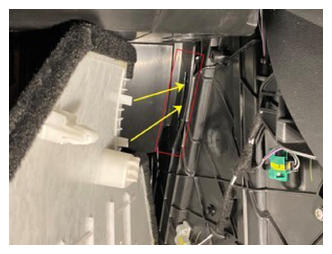

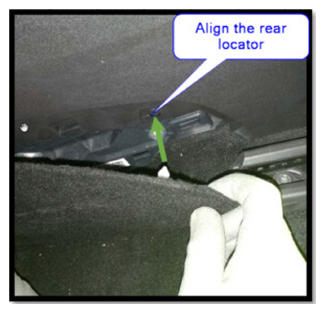

  56. Install LH console side panel carpet
    NOTE: 11x clips, 2x locating pins, Position side panel and align the front into front locator, then the rear locator, Push side panel towards console to install
    G14824965Courtesy of TESLA, INC.
    G14824966Courtesy of TESLA, INC.
    G14824967Courtesy of TESLA, INC.
    G14824968Courtesy of TESLA, INC.
  57. Install LH front floor mat

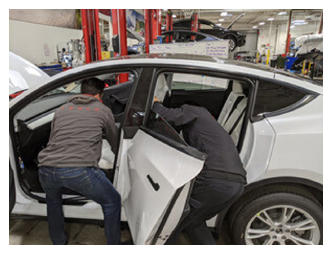

  58. Install LH front seat into vehicle
    NOTE: Recommend assistance, Assistant should be ready to support seat back, Caution not to damage any trim
    G14824969Courtesy of TESLA, INC.
    G14824970Courtesy of TESLA, INC.

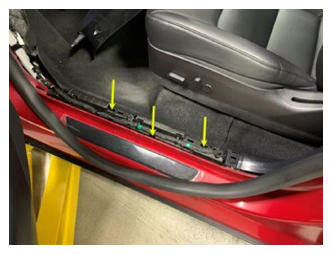

  59. Secure LH front seat harness and guide to body
    NOTE: 3x clips, 1x datum, Datum goes through access hole on LH lower B-pillar
    G14824971Courtesy of TESLA, INC.
    G14824972Courtesy of TESLA, INC.
  60. Install LH front seat harness onto LH footwell support bracket
    NOTE: 2x clips
    G14824973Courtesy of TESLA, INC.
    G14824974Courtesy of TESLA, INC.

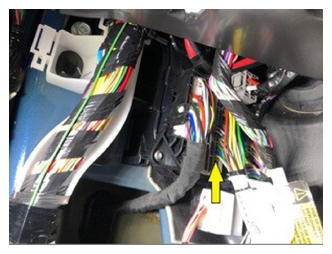

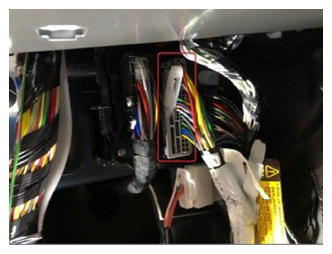

  61. Connect LH front seat harness to VC left
    NOTE: 1x electrical connector, Ensure the connector and lock are fully engaged, Perform pull push pull test to ensure the connector and connector lock are seated
    G14824975Courtesy of TESLA, INC.
    G14824976Courtesy of TESLA, INC.

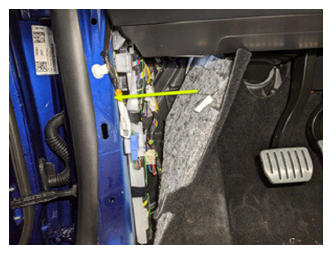

  62. Fully seat LH front cabin carpet
    G14824977Courtesy of TESLA, INC.
  63. Install clip securing LH front cabin carpet to body
    G14824978Courtesy of TESLA, INC.
  64. Install LH lower A-pillar trim
    NOTE: 6x clips, 2 locating pins, Align front locating pin first
    G14824979Courtesy of TESLA, INC.
  65. Install clip securing LH lower A-pillar trim
    NOTE: 1x push clip
    G14824980Courtesy of TESLA, INC.

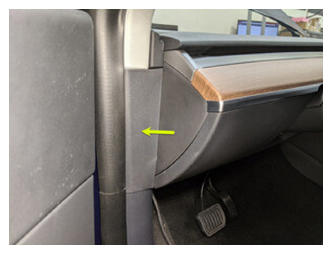

  66. Install LH mid A-pillar assembly
    NOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim
    G14824981Courtesy of TESLA, INC.

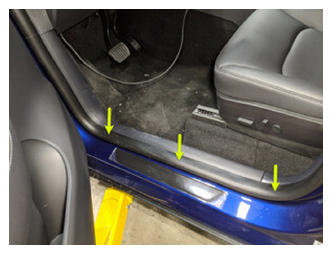

  67. Reseat LH front door seal along lower A-pillar trim
    G14824982Courtesy of TESLA, INC.

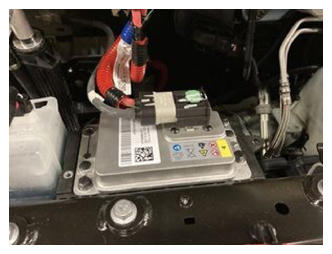

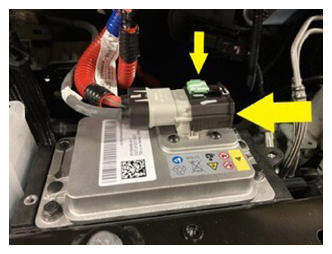

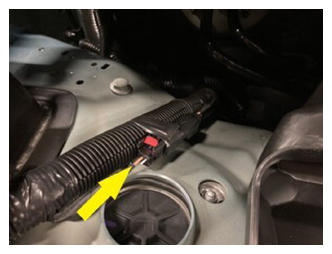

  68. Connect first responder loop and LV battery
    NOTE: 2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage green locking tab when fully seated
    G14824983Courtesy of TESLA, INC.
    G14824984Courtesy of TESLA, INC.
    G14824985Courtesy of TESLA, INC.

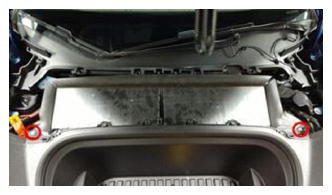

  69. Install HEPA filter assembly
    NOTE: 2x bolts, 10 mm, 5 N.m, Pivot forward edge down past frunk assembly, then carefully move rear edge past brake reservoir and into position
    G14824986Courtesy of TESLA, INC.
    G14824987Courtesy of TESLA, INC.
    G14824988Courtesy of TESLA, INC.

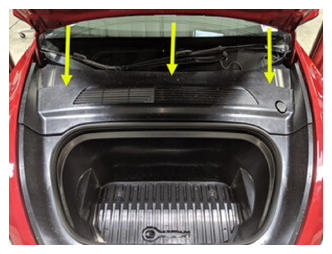

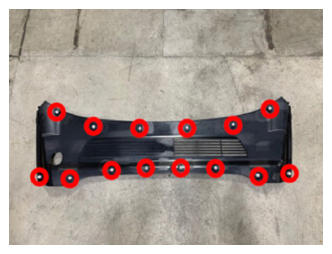

  70. Install rear apron
    NOTE: 14x clips, Hold rear wall of frunk to keep from flexing while engaging front clips
    G14824989Courtesy of TESLA, INC.
    G14824990Courtesy of TESLA, INC.
  71. Close hood
  72. Move LH front seat forward

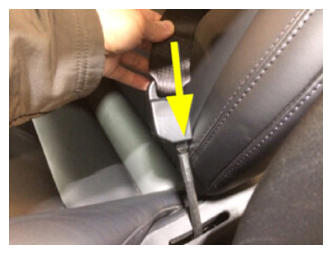

  73. Install LH front seat belt retractor to seat
    NOTE: Insert retractor into seat pre tensioner, Make sure it locks into position with push-pull-push test
    G14824991Courtesy of TESLA, INC.

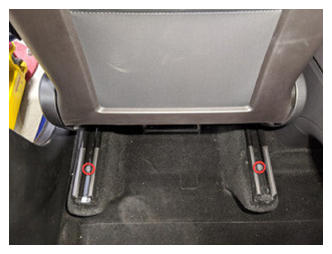

  74. Install LH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
    G14824992Courtesy of TESLA, INC.
  75. Move RH front seat forward
  76. Raise RH front seat cushion to maximum height
    NOTE: Adjust seat back if needed to avoid contacting headliner

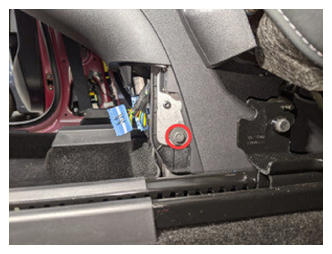

  77. Install RH rear exterior hardware to center console
    NOTE: 1x bolt, 10 mm, 7 N.m
    G14824993Courtesy of TESLA, INC.

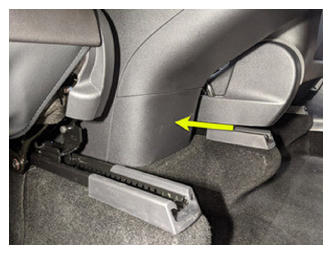

  78. Install console lower rear panel
    NOTE: 5x clips
    G14824994Courtesy of TESLA, INC.
  79. Move RH front seat to original position
  80. Move LH front seat backward

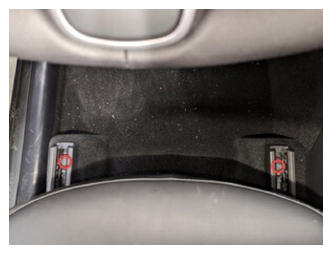

  81. Install LH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m, Install new patch bolts
    G14824995Courtesy of TESLA, INC.

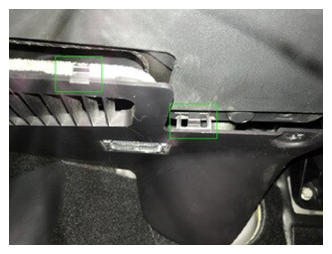

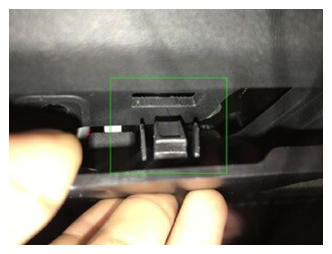

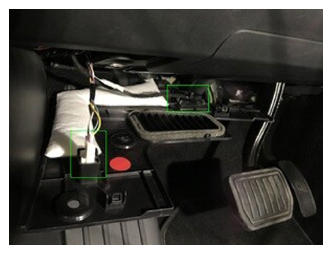

  82. Install connectors to LH footwell cover and position for installation
    NOTE: 3x tabs, 1x Ethernet connector, 1x puddle light connector
    G14824996Courtesy of TESLA, INC.
    G14824997Courtesy of TESLA, INC.
    G14824998Courtesy of TESLA, INC.
  83. Install screw and clips securing LH footwell cover
    NOTE: 1x screw, T20, 2.5 N.m, 2x push clips
    G14824999Courtesy of TESLA, INC.

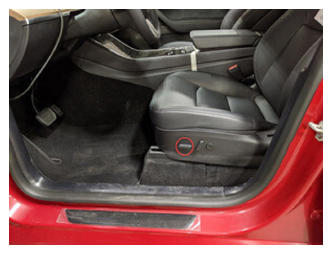

  84. Move LH front seat to original position
    G14825000Courtesy of TESLA, INC.
  85. Raise all four windows
  86. Close all four doors
    NOTE: If 12V is powered up, Unlatch rear doors before closing
