Glove Box - Without Knee Airbags - Remove And Replace: Remove

  1. Remove and secure the customer's belongings from the glove box, if needed.
  2. Remove the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  3. Remove the LH and RH air wave end caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  4. Remove the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  5. Remove the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  6. Remove the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
  7. Remove the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  8. Open the glove box.

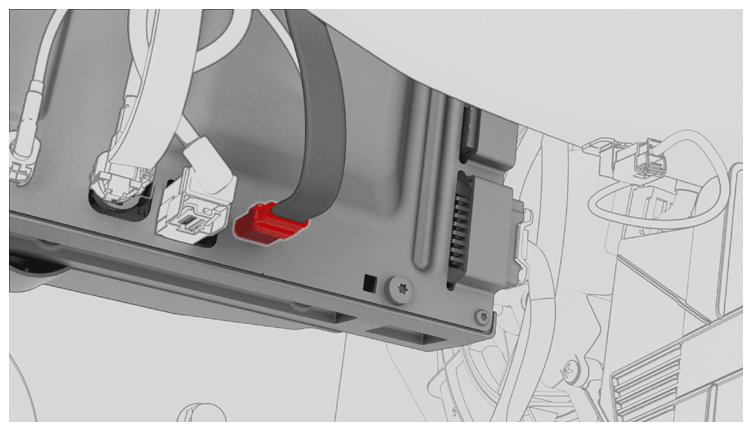

  9. Push down on the metal locking tab of the USB connector, and then disconnect the glove box USB cable from the car computer.
    G14824061Courtesy of TESLA, INC.

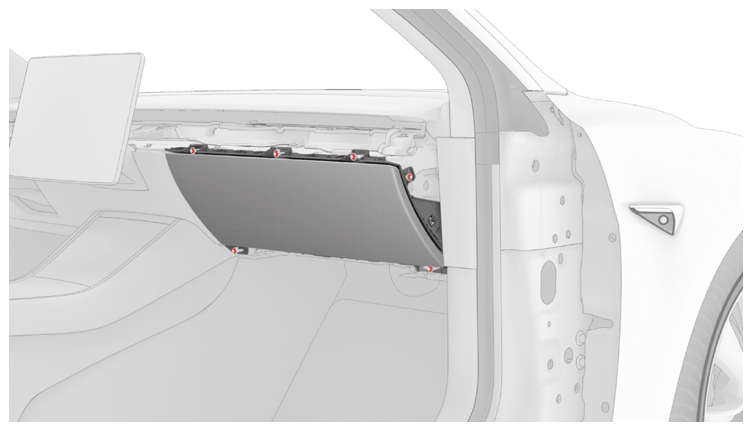

  10. Remove the screws that attach the glove box to the IP carrier.
    NOTE: One screw may be inside the glove box and not visible in the following image.
    G14824062Courtesy of TESLA, INC.

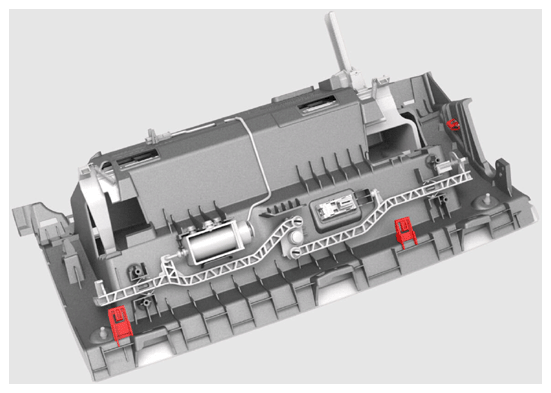

  11. Release the clips that attach the glove box to the IP carrier.
    G14824063Courtesy of TESLA, INC.

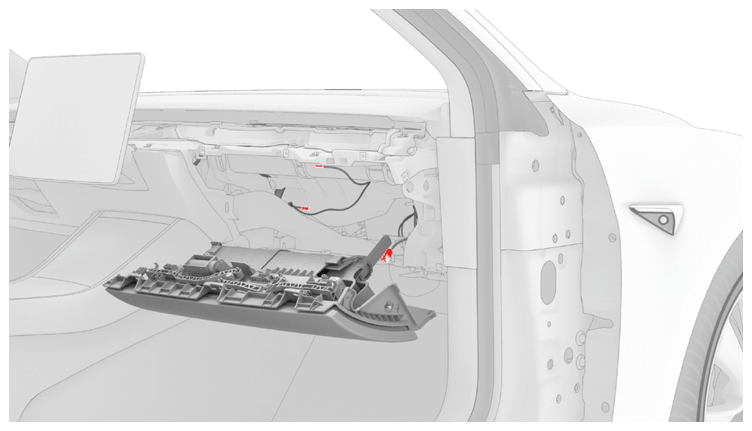

  12. Disconnect the electrical harness from the glove box solenoid connector, the damper connector, and the puddle light connector.
    NOTE: 2 of the electrical connectors are accessed from the bottom of the instrument panel.
    G14824064Courtesy of TESLA, INC.

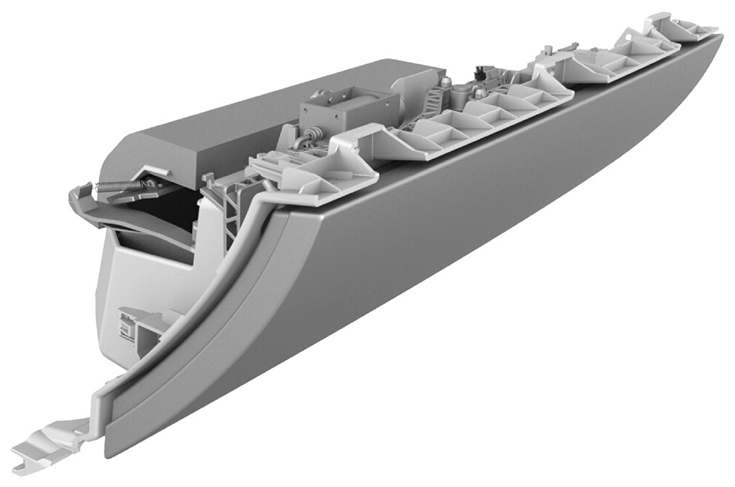

  13. Remove the glove box from the vehicle.
    G14824065Courtesy of TESLA, INC.
