Glove Box - Without Knee Airbags - Remove And Replace: Install

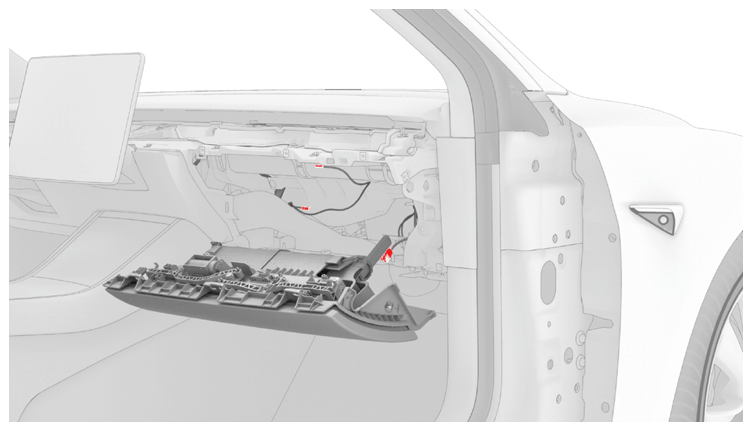

- Bring the glove box into the vehicle, and then connect the electrical harness to the glove box solenoid connector, the damper connector, and the puddle light connector.NOTE: 2 of the electrical connectors are accessed from the bottom of the instrument panel.CAUTION: Route the electrical harness from the puddle lamp forward of the divider at the linkages.

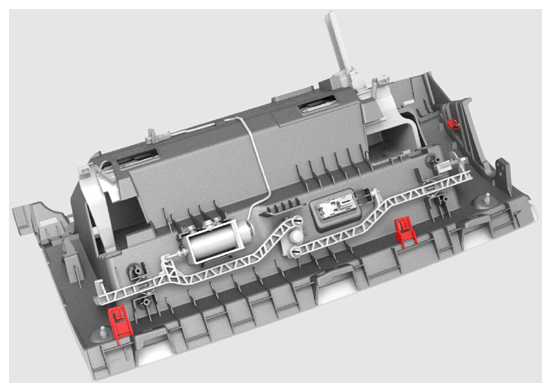

- Make sure that the glove box damper pin is fully seated, and not to bump the glove box damper when installing the glove box.

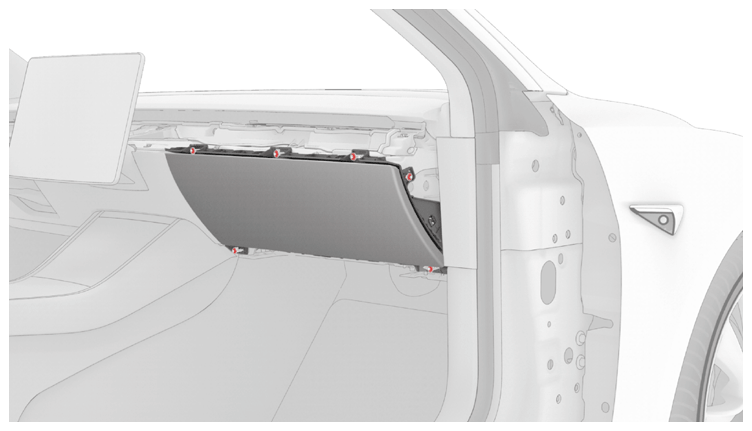

- Fasten the clips that attach the glove box to the IP carrier.
- Install the screws that attach the glove box to the IP carrier.
2.3 N.m (1.7 lbs-ft)

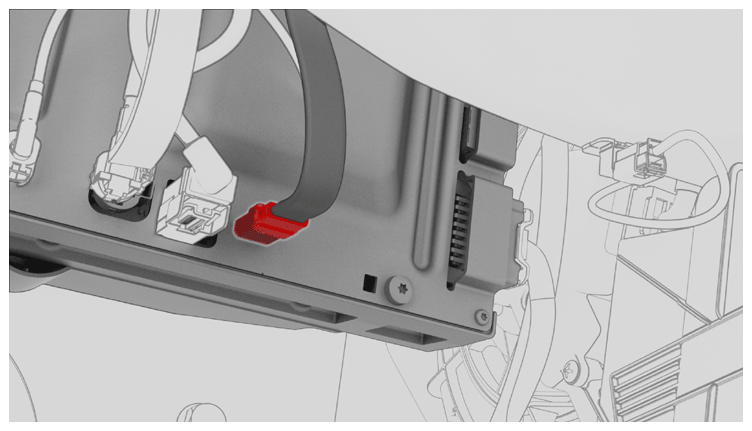

- Connect the glove box USB cable to the car computer.
- close the glove box.
- Install the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
- Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
- Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
- Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
- Install the LH and RH air wave end caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
- Install the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
- Verify that the glove box opens normally through the touchscreen.
- If removed earlier, put the customer's belongings back into the glove box.
