Glove Box - With Knee Airbags - Remove And Replace: Install

  1. Bring the glove box into the vehicle, and then connect the electrical harness to the glove box solenoid connector, the damper connector, and the puddle light connector.
    NOTE: 2 of the electrical connectors are accessed from the bottom of the instrument panel.
    NOTE: Route the puddle lamp electrical harness as illustrated.

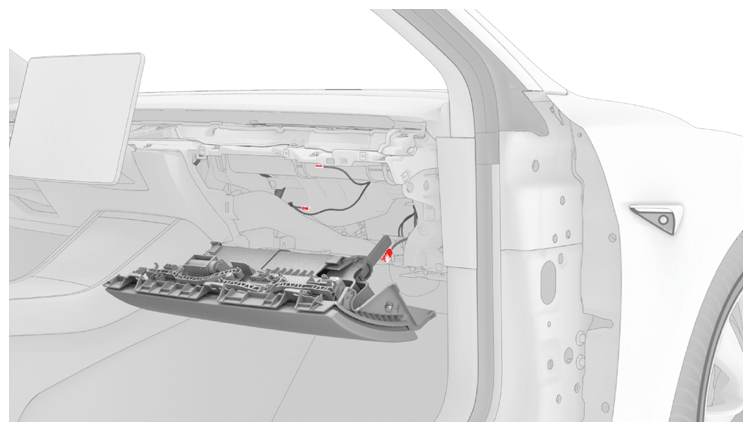

    Figure 1. Glove box harness connectors

    G14824056Courtesy of TESLA, INC.

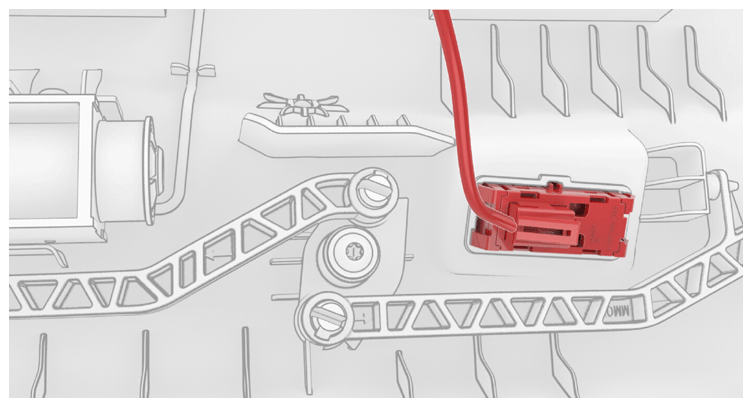

    Figure 2. Puddle lamp harness routing

    G14824057Courtesy of TESLA, INC.
  2. Make sure that the glove box damper pin is fully seated.
    CAUTION: Do not bump the glove box damper when installing the glove box.
  3. Fasten the clips that attach the glove box to the IP carrier.

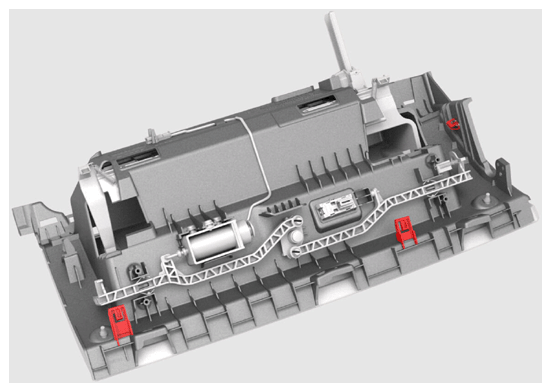

    G14824058Courtesy of TESLA, INC.
  4. Install the screws (x6) that attach the glove box to the IP carrier.

    2.3 N.m

    Tip:

    Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    • 4 in extension

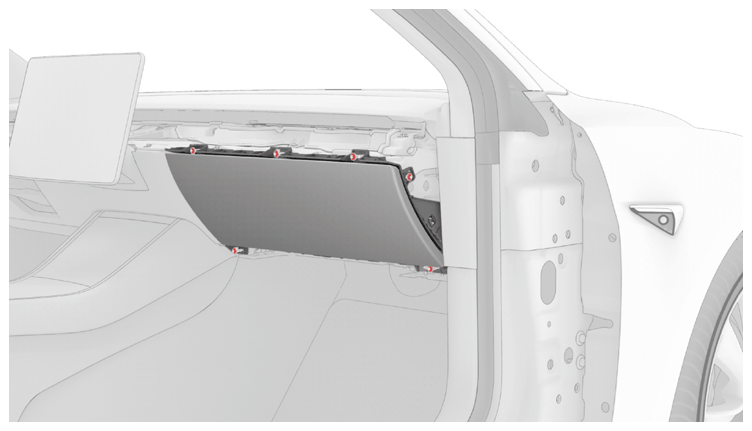

    G14824059Courtesy of TESLA, INC.
  5. Install the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  6. Install the front passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace) .
  7. Install the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
  8. Install the RH front floormat.
  9. Install the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  10. Install the RH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  11. Install the RH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  12. Install the RH air wave end cap from main decor assembly. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  13. Install the RH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  14. Install the LH air wave end cap from main decor assembly. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  15. Install the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  16. Connect 12V power. See 12V/LV Power (Disconnect and Connect) .
  17. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  18. Verify that the glove box door opens normally through the touchscreen.
  19. Return the customer's belongings in the glove box, if needed.
