Cover - Footwell - Passenger (RHD) - Remove And Replace: Remove

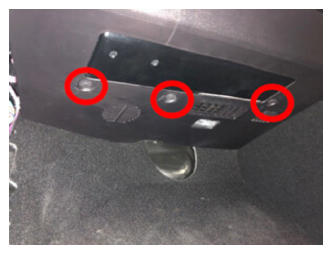

  1. Release the push clips (x3) that attach the passenger footwell cover to the IP carrier.
    G14824018Courtesy of TESLA, INC.

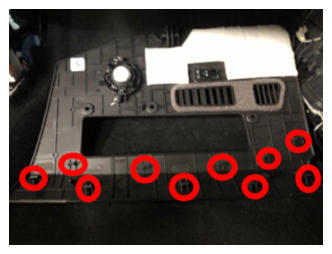

  2. Release the clips (x10) that attach the passenger footwell cover to the IP carrier.
    G14824019Courtesy of TESLA, INC.

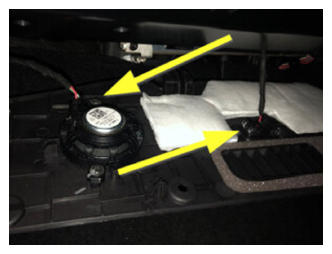

  3. Disconnect the electrical harness from the puddle light connector and emergency speaker connector.
    G14824020Courtesy of TESLA, INC.
  4. Remove the footwell cover from the vehicle.
