Cover - Footwell - Passenger (LHD) - Remove And Replace: Remove

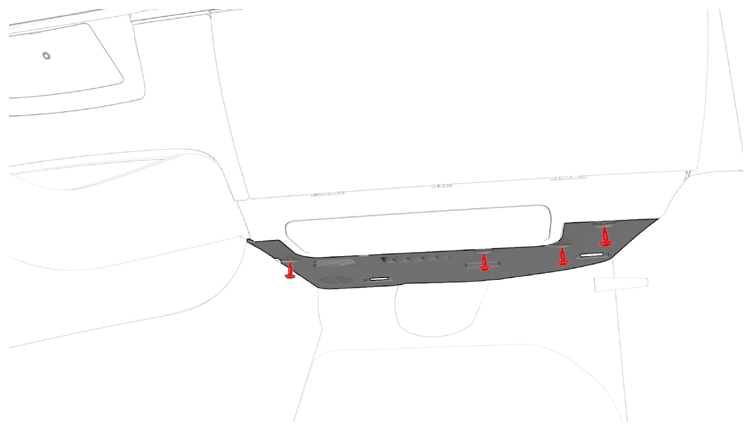

  1. Release the clips that attach the passenger footwell cover to the vehicle.
    G14824013Courtesy of TESLA, INC.

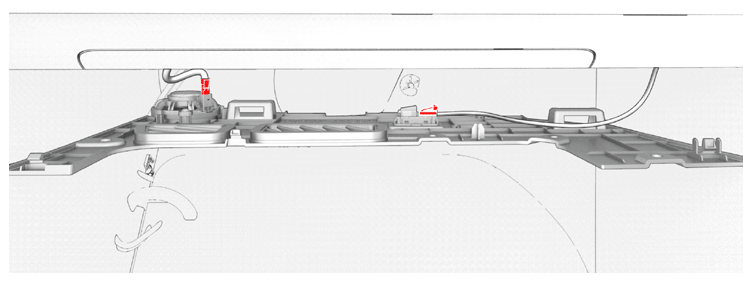

  2. Disconnect the electrical wiring harness connectors from the puddle light and emergency speaker.
    CAUTION: Do not disconnect the connectors by pulling on the harness.
    NOTE: If needed, use a pocket screwdriver to assist disconnecting.
    G14824014Courtesy of TESLA, INC.

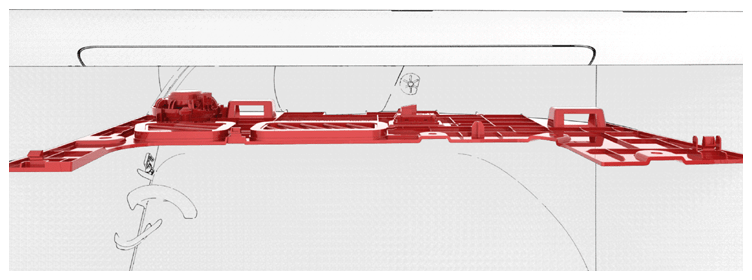

  3. Remove the footwell cover from the vehicle.
    G14824015Courtesy of TESLA, INC.

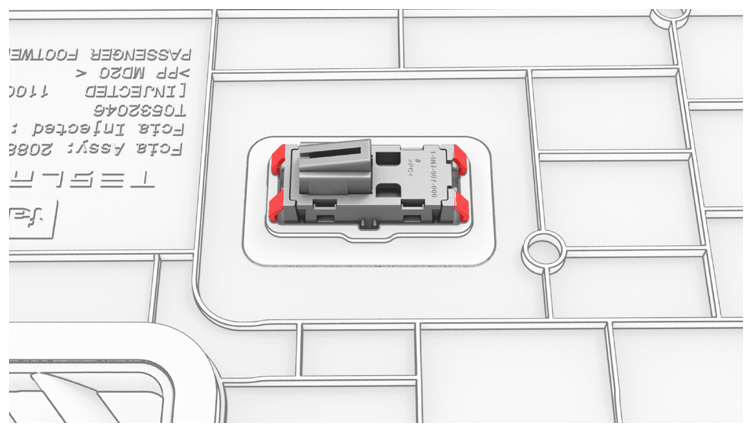

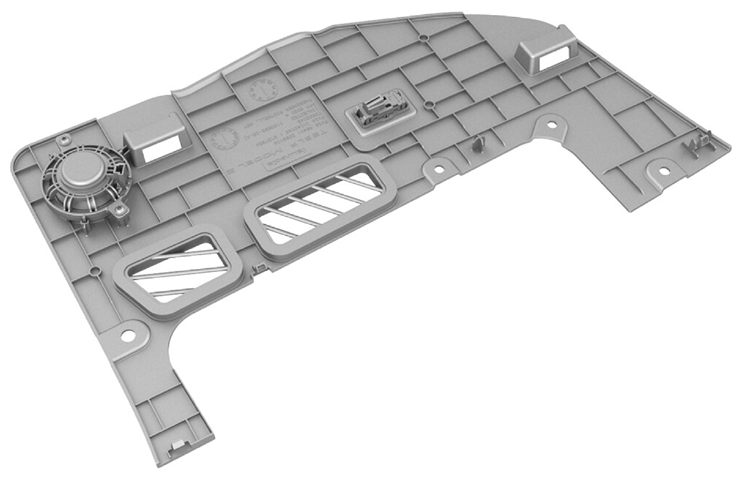

  4. Release the clips that attach the puddle light to the passenger footwell cover, and then remove the puddle light from the footwell cover.
    G14824016Courtesy of TESLA, INC.
    G14824017Courtesy of TESLA, INC.
