Wiper Arm - RH (RHD) - Remove and Replace: Install

  1. Position the RH wiper arm onto the vehicle.
    NOTE: Ensure the RH wiper tip is aligned between the two indicators at the corner of the windshield.

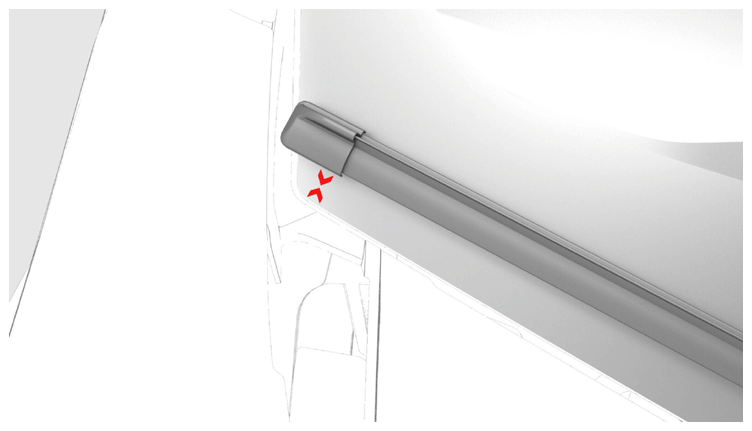

    G14834063Courtesy of TESLA, INC.
  2. Install the nut that attaches the RH wiper arm to the wiper motor assembly.

    25 N.m (18.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 15 mm socket
    • 3/8 in std ratchet
    • 3/8 in torque wrench (installation only)

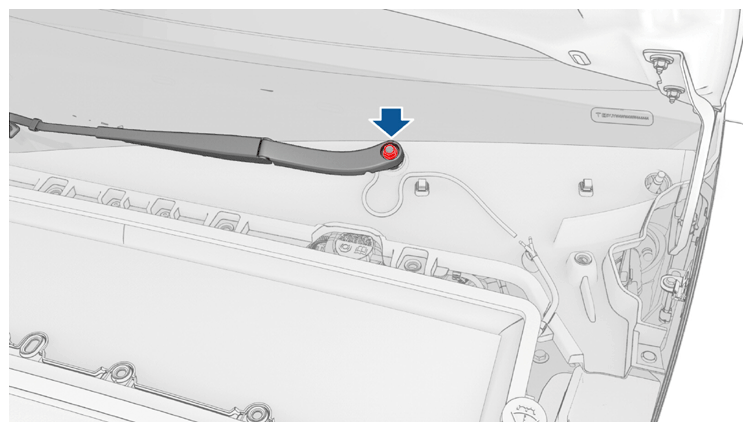

    G14834064Courtesy of TESLA, INC.
  3. Connect the RH wiper arm hose to the Y-tube, and then install the hose clip.

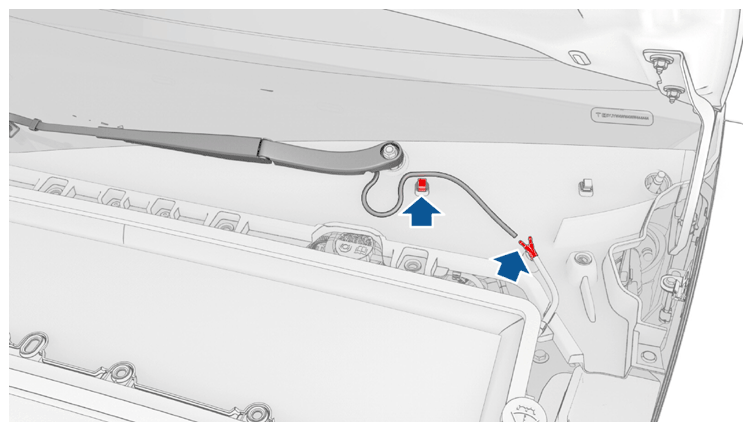

    G14834065Courtesy of TESLA, INC.
  4. Install the RH wiper arm nut cover.

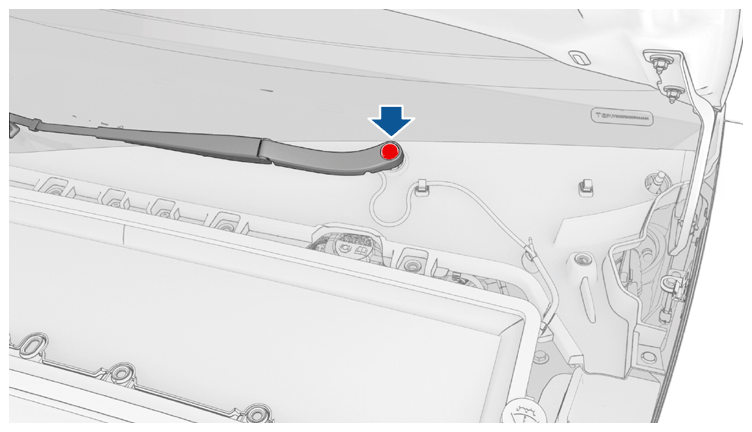

    G14834066Courtesy of TESLA, INC.
  5. Repeat steps  1 through  4.
    NOTE: Make sure to route the LH wiper arm hose under the wiper arm pivot joint.

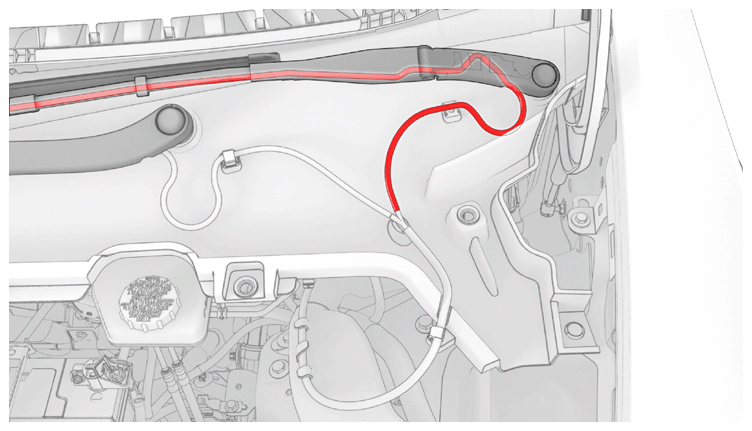

    G14834067Courtesy of TESLA, INC.
  6. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
